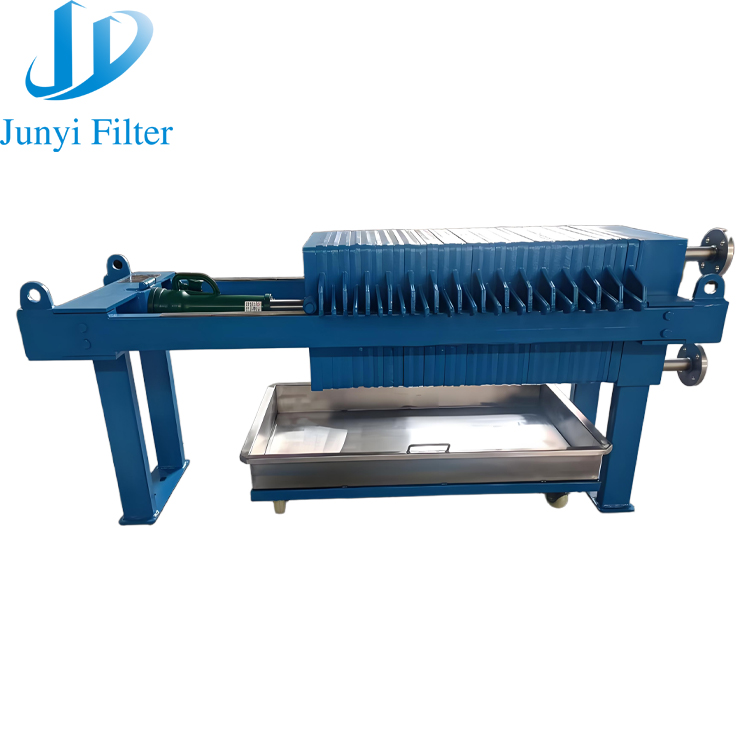

The main features of this cast iron plate and frame filter press
✅ Durable Cast Iron Construction:
14 Filter Plates & 15 Filter Frames ( 380×380mm outer) ensure long-term stability under high-pressure conditions.
Carbon Steel Frame with anti-corrosion coating and protective blue paint for harsh environments.
✅ Efficient Filtration Performance:
3m² Filtration Area , high-capacity processing.
5μm PP Filter Cloth captures fine particle.
✅ Manual Simplicity, Industrial Strength:
Jack-Driven Plate Compression: Ensures tight sealing up to 1.0MPa design pressure (0.6MPa operating).
Corner Feed & Single Dark Flow Discharge: Optimized for uniform slurry distribution and efficient filtrate collection.
304 Stainless Steel Portable Filter Cake Tray: Convenient to collect filter cakes.
✅ Easy Maintenance:
25mm Cake Thickness: Balanced for easy manual unloading and consistent solids retention.
Manual Plate Release: Reduces reliance on complex machinery in remote sites.

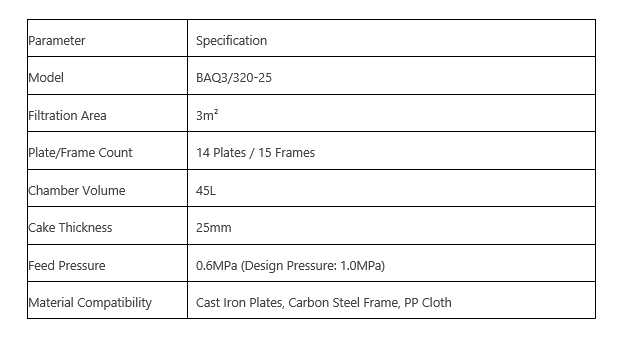

Technical Specifications
Why Choose Us?
Customizable Options: Adjust plate count, materials, or pressure ratings to match your needs.
Global Support: Technical guidance from installation to maintenance.
Competitive Pricing: Industrial-grade quality without the automation premium.
Post time: May-10-2025
