Shanghai Junyi Filter Equipment Co.,Ltd. supplied high-quality SS316 bag filter housings to a domestic import and export trading company, which were exported to Saudi Arabia for professional pesticide filtration.
Our customized bag filter solutions feature excellent corrosion resistance and precise filtration performance, perfectly meeting the industrial filtration needs of the Saudi market and showcasing our strength in manufacturing high-standard filtration equipment for global pesticide processing scenarios.
The customer highly appreciated the quality of our products and have made multiple purchases.
Custom Bag Filter Specs for Pesticide Filtration

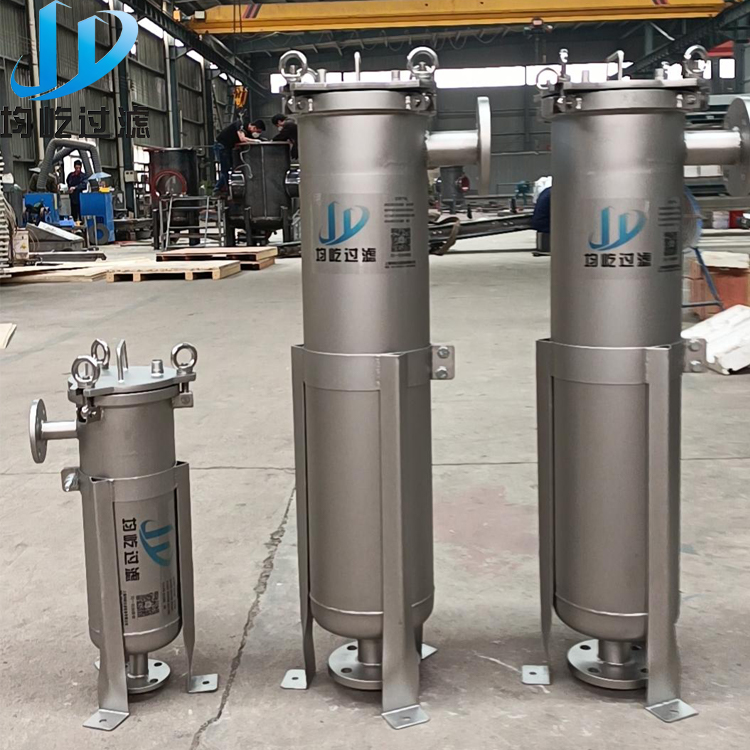

Tailored for pesticide filtration work, we provided 2 types of SS316 single bag filter housings with 10-micron PP filter bags.
Key parameters are as follows:
- JYSF-4# Single Bag Filter Housing
l Filtration area: 0.12m² | Max theoretical flow: 8m³/h
l Material: SS316 | Inlet & outlet: 1 inch | Cylinder diameter: 159mm
l Design pressure: 1.0Mpa | Working pressure: ≤0.6Mpa | Working temperature: 60℃
l Equipped with 1×4# 10μm PP filter bag | Height-adjustable legs for flexible installation
- JYSF-2# Single Bag Filter Housing
l Filtration area: 0.5m² | Max theoretical flow: 40m³/h
l Material: SS316 | Inlet & outlet: 2 inches | Cylinder diameter: 219mm
l Design pressure: 1.0Mpa | Working pressure: ≤0.6Mpa | Working temperature: 60℃
l Equipped with 1×2# 10μm PP filter bag | Height-adjustable legs for on-site adaptability
Core Advantages for Pesticide Filtration Scenarios
l Superior corrosion resistance: Full SS316 material ensures the filter can resist the corrosive properties of pesticide raw materials, adapting to the harsh working conditions of pesticide processing and ensuring long-term stable operation.
l Precise filtration effect: 10-micron PP filter bags achieve fine filtration of pesticide slurry, effectively removing solid impurities and improving the purity of pesticide products.
l Practical structural design: Side-in bottom-out flow path optimizes filtration efficiency; height-adjustable legs fit different on-site installation requirements; national standard flange connection enables easy pipeline assembly and maintenance.
l Stable pressure & temperature performance: The filters are designed to withstand 1.0Mpa pressure and 60℃ working temperature, fully matching the process parameters of industrial pesticide filtration production.
Reliable Supply for Global Export
As a professional manufacturer of industrial filtration equipment, we have rich experience in cooperating with import and export trading companies, providing standard and customizable filtration products for global markets Our bag filter housings cover various specifications such as 1#, 2#, 3#, 4#, 5#, and also multi-bag filter housing, with optional materials (Carbon steel, SS304, SS316L, PP) and filter bag precisions, which can be tailored to different filtration needs of pesticide, chemical, food and beverage, water treatment and other industries.
All products are manufactured in strict accordance with industrial standards, with excellent quality and complete supporting services, ensuring smooth export and on-site application.
We also have CE certificates which is necessary for European market.
Need high-quality bag filters for industrial filtration projects in the Middle East, European, Asian, African or other global markets? Contact Shanghai Junyi Filter for customized specifications and professional quotation!
Parameter of single bag filter housing (Support customization)
|
Model |
Bag size (Diameter*length) |
Filter area (m2) |
Inlet outlet size (mm) |
Max flow rate (viscosity 1 cP) |
Diameter of housing (mm) |
Total height (mm) |
|
JYSF-4# |
φ105*380mm |
0.12 |
DN25 |
8m3/h |
159 |
800 |
|
JYSF-1# |
φ180*430mm |
0.25 |
DN40 |
20m3/h |
219 |
900 |
|
JYSF-2# |
φ180*810mm |
0.5 |
DN50 |
40m3/h |
219 |
1200 |
|
JYSF-9# |
φ280*1000mm |
1 |
DN65 |
80m3/h |
300 |
1350 |
|
Description to the model: JYSF-4# as an example JY — Short name of our company name JUNYI SF — Single Bag Filter Housing 4# — 4# Filter bag |
||||||
|
Working Pressure and coressponding design pressure: Security filter ≤0.3MPA (Design Pressure 0.6MPA) Conventional bag filters ≤0.6MPA (Design Pressure 1.0MPA) High pressure bag filter ≤1.0MPA (Design Pressure 1.6MPA) |
||||||
|
Sealing ring: Buna-N rubber, Silica gel, EPDM, Viton, Teflon-coated rubber |
||||||
|
Material of housing: SS304, SS316L, Carbon steel, PP, Duplex SS2205 |
||||||
|
Temperature: <60℃; <100℃; <150℃; >200℃ |
||||||
|
Flange standard: HG, ASME B16.5, BS4504, DIN, JIS, etc. |
||||||
|
Filter bag material: PP, PE, NMO, Steel wire mesh |
||||||
|
Note: 1. The above flow is based on the water at the normal temperature and normal pressure. It is affected by the characteristics of the fluid, viscosity, solid content, working pressure, working temperature, feeding pump, etc. 2.We can customize according to user’s different requirements. |
||||||
