Suzhou Client Order Ready: Junyi Supplies Customized 4P2S Bag Filters for High-Precision Industrial Filtration

Shanghai Junyi Filter Equipment Co., Ltd. has successfully completed preparation work for a special order from a Suzhou client (Contract No. JY20260120GL). The four JYMF-4P-304 bag filters, customized to meet the client’s core requirements of “1-micron high-precision filtration, 304 stainless steel material compatibility, and simultaneous delivery of multiple units,” once again demonstrate Junyi’s professional expertise in the precision bag filter customization field.

Accurate Identification of Client Needs

This Suzhou client, operating in industrial production and processing, had clear and stringent requirements for their solid-liquid separation process:

• Equipment must achieve 1-micron ultra-high precision filtration

• Main body and core components must be made of 304 stainless steel

• Four identical units needed for multi-station simultaneous use

• Completion by specified date for client pick-up and installation

Upon receiving these requirements, Junyi’s technical team promptly developed a customized solution featuring 1-micron PP filter bags and optimized internal flow channel design. All four units were manufactured strictly according to unified standards to ensure consistency across multiple units.

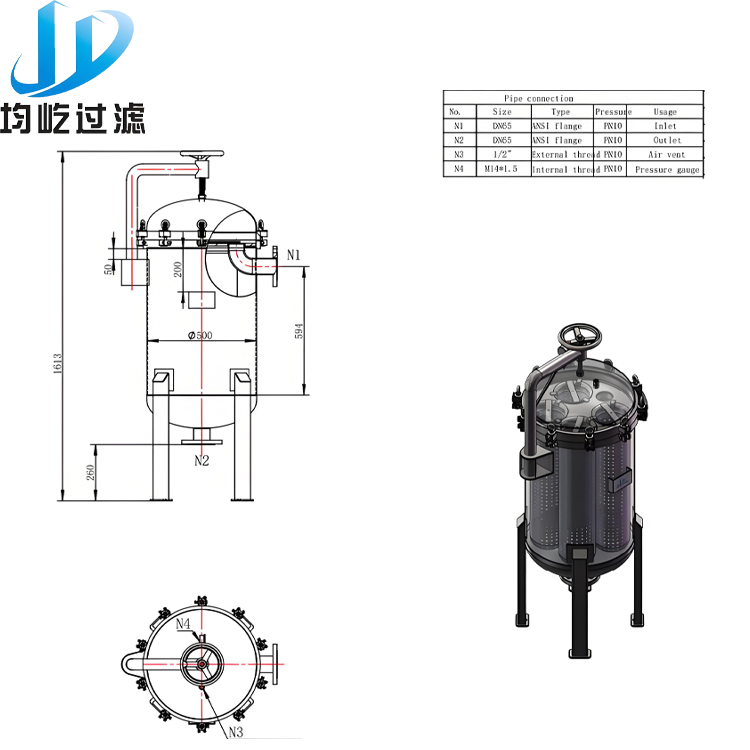

Product Core Specifications

Each JYMF-4P-304 bag filter features:

• Material: 304 stainless steel main body, 3mm shell thickness

• Design Pressure: 1.0 Mpa

• Dimensions: 500mm vessel diameter, DN100 connections (side-in/bottom-out design with bottom elbow)

• Filtration Precision: 1-micron with customized PP filter bags (36 total, including 20 spares)

• Surface Finish: Polished for easy cleaning and maintenance

• Sealing: Leak-proof design with precision-matched seals

Comprehensive Quality Verification

Each unit underwent:

• Individual pressure testing at 1.0 Mpa to verify seal integrity

• Filtration accuracy verification to ensure stable 1-micron performance

• Dimensional consistency checks across all four units

• Visual inspection of welds and surface finish

Localized Delivery Assurance

All four units are:

• Packaged in export-grade wooden crates with protective padding

• Supplied with comprehensive technical documentation, including installation manuals and parameter sheets

• Fitted with dedicated nameplates for full lifecycle traceability

• Ready for client pick-up as scheduled

This successful order preparation highlights Junyi’s capability in delivering customized, high-precision filtration solutions with consistent quality across multiple units for industrial applications.
