The fully automatic diaphragm filter press has helped a mining enterprise reduce the tailings treatment cost by 30%.

I. Customer Background and Core Challenges

A mining company is an important copper mining and processing enterprise in South America. With the expansion of production scale, the volume of tailings produced during the beneficiation process has increased sharply. Their original traditional dehydration equipment is facing severe challenges:
1. Low efficiency: The single batch processing cycle is long, unable to keep up with the production capacity, becoming a bottleneck in the production process.
2. High moisture content of filter cake: The moisture content of the filter cake has remained at 28%-30% for a long time, in a viscous mud-like state, resulting in extremely high transportation costs, and there is a risk of leakage and landslide during storage, which does not meet environmental protection requirements.
3. High labor cost: The unloading process requires workers to assist in cleaning, the operating environment is poor, and the problem of labor-intensive is prominent.
4. Water resource waste: The filtrate is turbid and cannot be effectively recycled, wasting precious water resources.
The customer urgently needs an efficient, automated, and highly effective dehydration solution that can produce ultra-low moisture content filter cakes, in order to achieve cost reduction, efficiency improvement, and meet environmental protection standards.
II. Our Solution

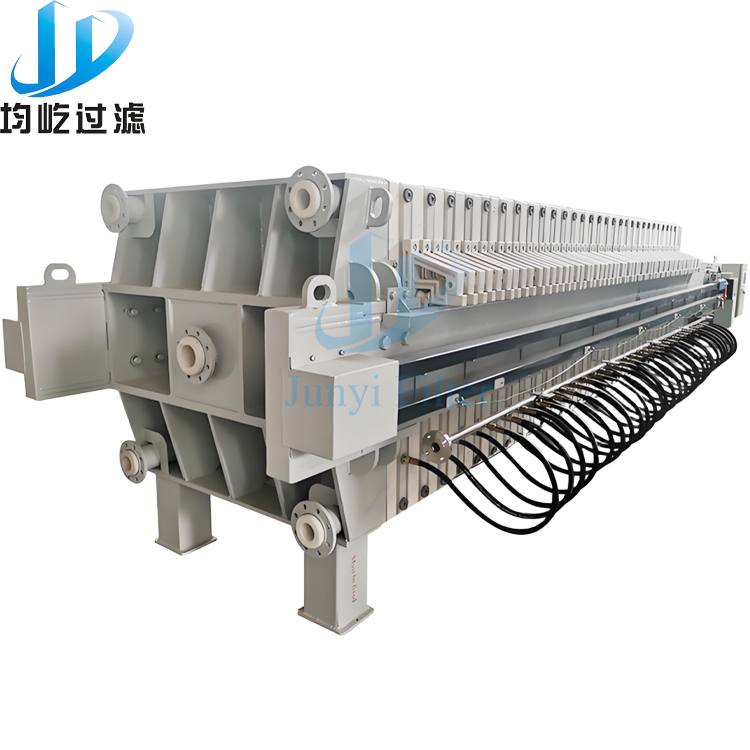

After in-depth technical discussions and material experiments, we tailored a solution specifically for them, with the fully automatic plate-sealing diaphragm filter press at its core:

1525
Equipment selection: Two models with a filtration area of 200 square meters each were recommended, one for use and one as a backup, to ensure continuous production.
Core technology application:
High-pressure diaphragm pressing: By injecting 2.0 MPa of high-pressure water into the diaphragm, it performs a second strong squeezing on the pre-formed filter cake, breaking the capillary structure and extracting more moisture.
Fully automatic operation: Integrated with a PLC control system, it realizes unmanned operation throughout the process from pressing, feeding, pressing, drying, discharging to filter cloth rinsing.
Energy-saving design: Using a combination of “variable frequency feed pump + high-pressure pressing pump”, it only provides the maximum pressure when needed, significantly reducing energy consumption compared to traditional equipment.
III. Analysis of Implementation Outcomes and Benefits
Since the equipment was officially put into operation in August 2023, its performance has far exceeded the expectations of the customers.
1.The moisture content of the filter cake has been significantly reduced:
Outcome: The average moisture content of the filter cake has decreased from 30% to below 15%, resulting in a solid dry cake that crumbles upon gentle pressure with your hand.
Benefit: The transportation cost has been directly reduced by 40%; the tailings storage is safe and risk-free, and it can easily pass the environmental protection audit.
2. Significant improvement in production efficiency:
Outcome: The single cycle time (including unloading) has been reduced to 25 minutes, and the processing capacity has reached 55 tons of dry ore per day per machine.
Benefit: It has completely resolved the production bottleneck and ensured the continuous and efficient operation of the beneficiation plant.
3. Significant reduction in operating costs:
Outcome: Achieved unmanned operation, requiring only regular inspections. The filtrate is clear and directly reused in the beneficiation process.
Benefit: Labor costs were saved by over 80%; the water reuse rate exceeded 85%, resulting in considerable savings in water fees and wastewater treatment costs annually. Overall calculation shows that the customer recovered the equipment investment cost within 14 months.
4. Win-win for Safety and Environmental Protection:
Outcome: A clean workshop environment has eliminated the safety risks associated with manual cleaning; it has also achieved the reduction and recycling of tailings.
Benefit: It has created a responsible and green mining enterprise image.
IV. Customer Testimonials
“This automatic plate-sealing diaphragm filter press has completely changed our perception of the dehydration equipment. It is not just a machine, but rather a reliable ‘automated employee’. The dry cakes it produces and the overall benefits it brings are truly astonishing. China’s equipment technology and services have reached the world-class level, solving our major problems.”
Production Director Mr. Rodriguez
V. Why Choose Us?
Professional technical consultation: Offer precise selection plans based on experiments, rather than simply selling equipment.
Customized solutions: The products can be designed and customized according to actual needs.
Mature and reliable products: The core components all adopt high-quality brands to ensure long-term stable operation.
Globalized after-sales service: Provide remote online support and respond quickly.
