Industrial Basket Strainer 316 Stainless Steel Customizable Factory Price

Brief Introduction:

This product is a stainless steel basket-type filter with a diameter of DN125. It is mainly used in industrial pipeline systems to filter impurities and protect downstream equipment. The shell material is 316 stainless steel. The cylinder diameter is 219mm and the thickness is 4mm. The surface has been polished, providing good corrosion resistance and cleanliness. It is suitable for coarse filtration scenarios of water, oil, gas, etc.


Product Detail

Product Features




1.High precision filtration:
Filtration accuracy of 1.5mm, suitable for removing larger particle impurities.
2.High-quality material:
The main body is made of 316 stainless steel, which has strong corrosion resistance and is suitable for various industrial environments.
3.Compact structure:
The distance between flanges is 420mm, suitable for standard pipeline layout.
4.Standard flange interface:
Adopting the PN25-AS2129 flange standard, with a flange hole diameter of 18mm and 8 evenly distributed holes, facilitating installation.
5.Humanized design:
Equipped with 3/4″ internal threaded BSP exhaust and drainage outlets, facilitating maintenance and emptying.

Product advantages


1.High durability:
The entire product is made of thickened stainless steel, with the cylinder thickness reaching 4mm, ensuring excellent pressure resistance.
2.Easy maintenance:
The net basket structure of the machine can be disassembled and cleaned, reducing downtime.
3.Sealing is reliable:
It is made of triethylene terephthalate (TERT) sealing material, which has excellent temperature and weather resistance properties.
4.Customized service:
The flange standards, cylinder dimensions and other parameters can be adjusted according to customer requirements.
5.Packaging safety:
The equipment is packed in a quick-release buckle wooden box to ensure its integrity during transportation.

Application fields
1


Petroleum and Chemical Industry


2


Water treatment system


3


Industrial cooling circulating water


4


Food and beverage processing


5


General industrial pipeline filtration

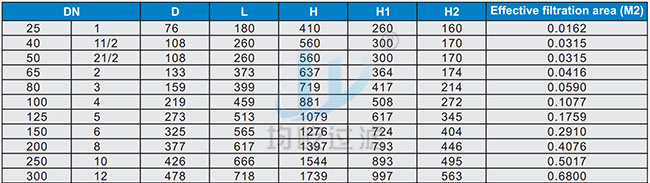

Parameter Table
 篮式参数表
