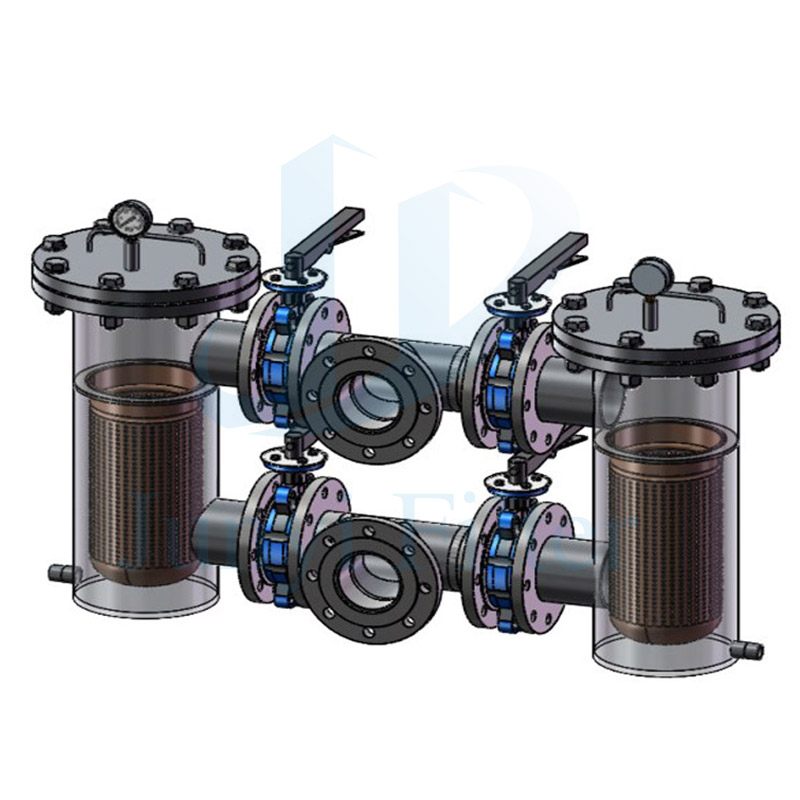

Duplex Basket Filter for Industry continuous filtration
✧ Product Features
1. Configure the filtration degree of the filter screen according to customer needs.
2. The structure is simple, easy to install, operate, disassemble and maintain.
3. Less wearing parts, low operation and maintenance costs.
4. The stable production process can protect instruments and mechanical equipment and maintain the safety and stability of the whole process.
5. The core part of is the filter basket, which is generally welded with a stainless steel punching mesh and a layer stainless steel wire mesh.
6. The housing can be made of carbon steel, SS304, SS316L, or duplex stainless steel.
7. Filter basket is made of stainless steel.
8. Remove large particles, manual regular cleaning the filter basket and used again and again.
9. The suitable viscosity of the equipment is (cp)1-30000; The suitable working temperature is -20--+250℃; Design pressure is 1.0/1.6/2.5Mpa.
|
Model |
Inlet & outlet |
L(mm) |
H(mm) |
H1(mm) |
D(mm) |
Sewage outlet |
|
|
JSY-LSP25 |
DN25 |
1” |
220 |
260 |
160 |
Φ130 |
1/2” |
|
JSY-LSP32 |
DN32 |
1 1/4” |
230 |
270 |
160 |
Φ130 |
1/2” |
|
JSY-LSP40 |
DN40 |
1 1/2” |
280 |
300 |
170 |
Φ150 |
1/2” |
|
JSY-LSP50 |
DN50 |
2” |
280 |
300 |
170 |
Φ150 |
3/4” |
|
JSY-LSP65 |
DN65 |
2 2/1” |
300 |
360 |
210 |
Φ150 |
3/4” |
|
JSY-LSP80 |
DN80 |
3” |
350 |
400 |
250 |
Φ200 |
3/4” |
|
JSY-LSP100 |
DN100 |
4” |
400 |
470 |
300 |
Φ200 |
3/4” |
|
JSY-LSP125 |
DN125 |
5” |
480 |
550 |
360 |
Φ250 |
1” |
|
JSY-LSP150 |
DN150 |
6” |
500 |
630 |
420 |
Φ250 |
1” |
|
JSY-LSP200 |
DN200 |
8” |
560 |
780 |
530 |
Φ300 |
1” |
|
JSY-LSP250 |
DN250 |
10” |
660 |
930 |
640 |
Φ400 |
1” |
|
JSY-LSP300 |
DN300 |
12” |
750 |
1200 |
840 |
Φ450 |
1” |
|
JSY-LSP400 |
DN400 |
16” |
800 |
1500 |
950 |
Φ500 |
1” |
|
Larger sizes are available on request, and we can customize according to user’s request too. |
|||||||
