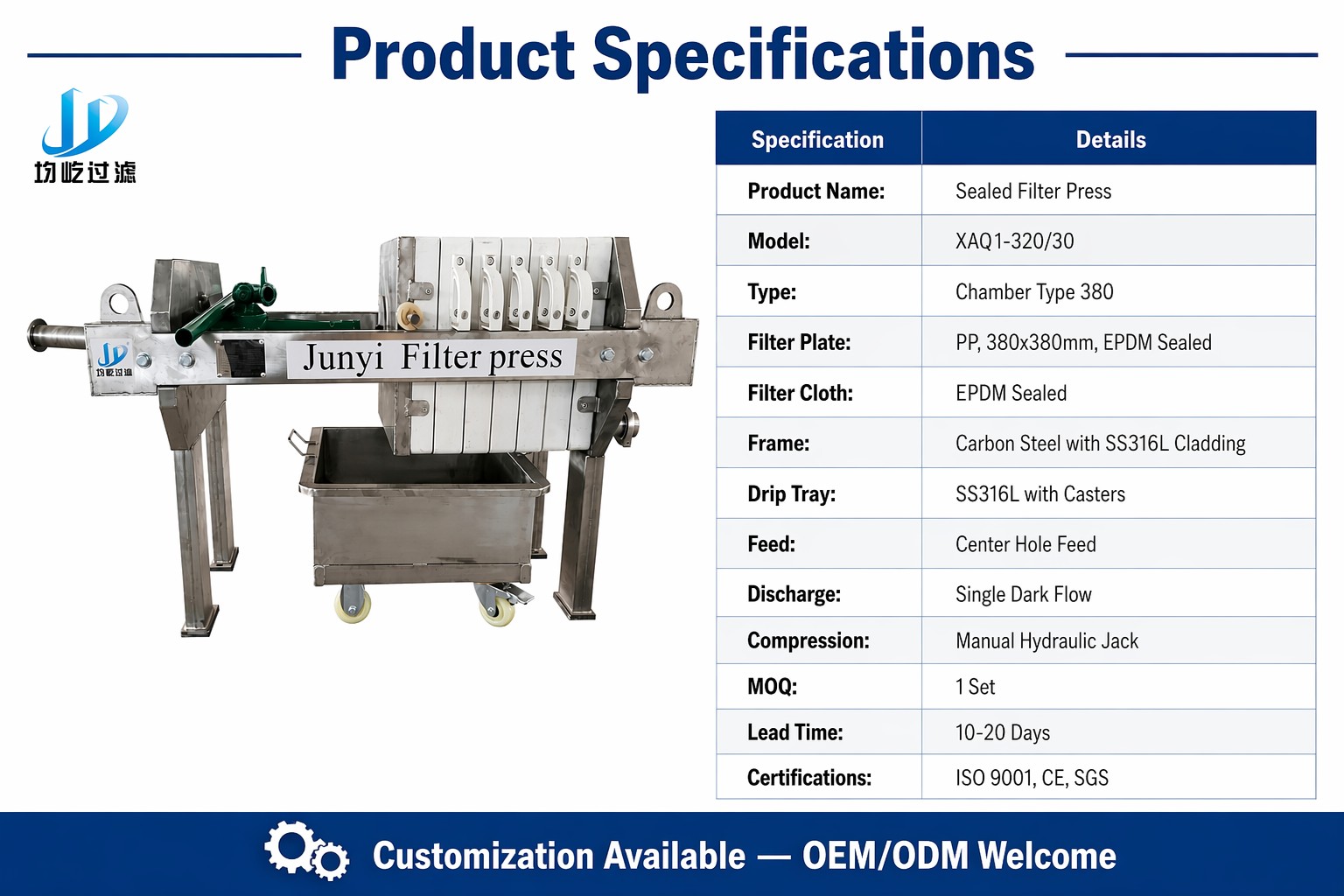

EPDM Sealed Filter Press 380×380 PP Plates Manual Jack Discharge

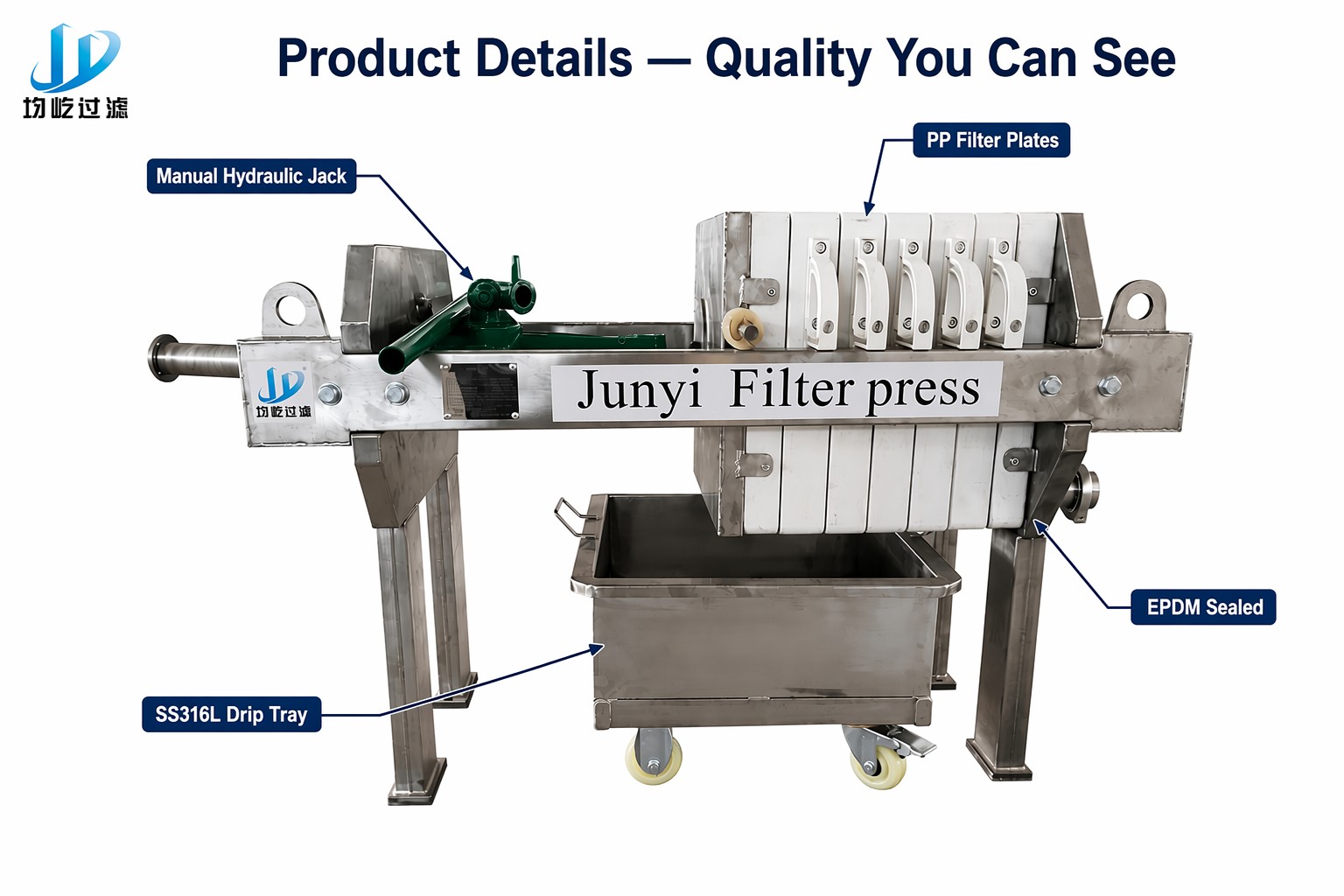

Product Features

Fully sealed filtration system: The filter plates are sealed together using EPDM. The entire process of feeding and liquid discharge is enclosed, with no open sections, effectively controlling the escape of odors and the splashing of the material liquid.
Manual jack compression: No need for electricity or hydraulic station. The mechanical jack provides stable and uniform compression force. The operation is intuitive and maintenance is minimal.

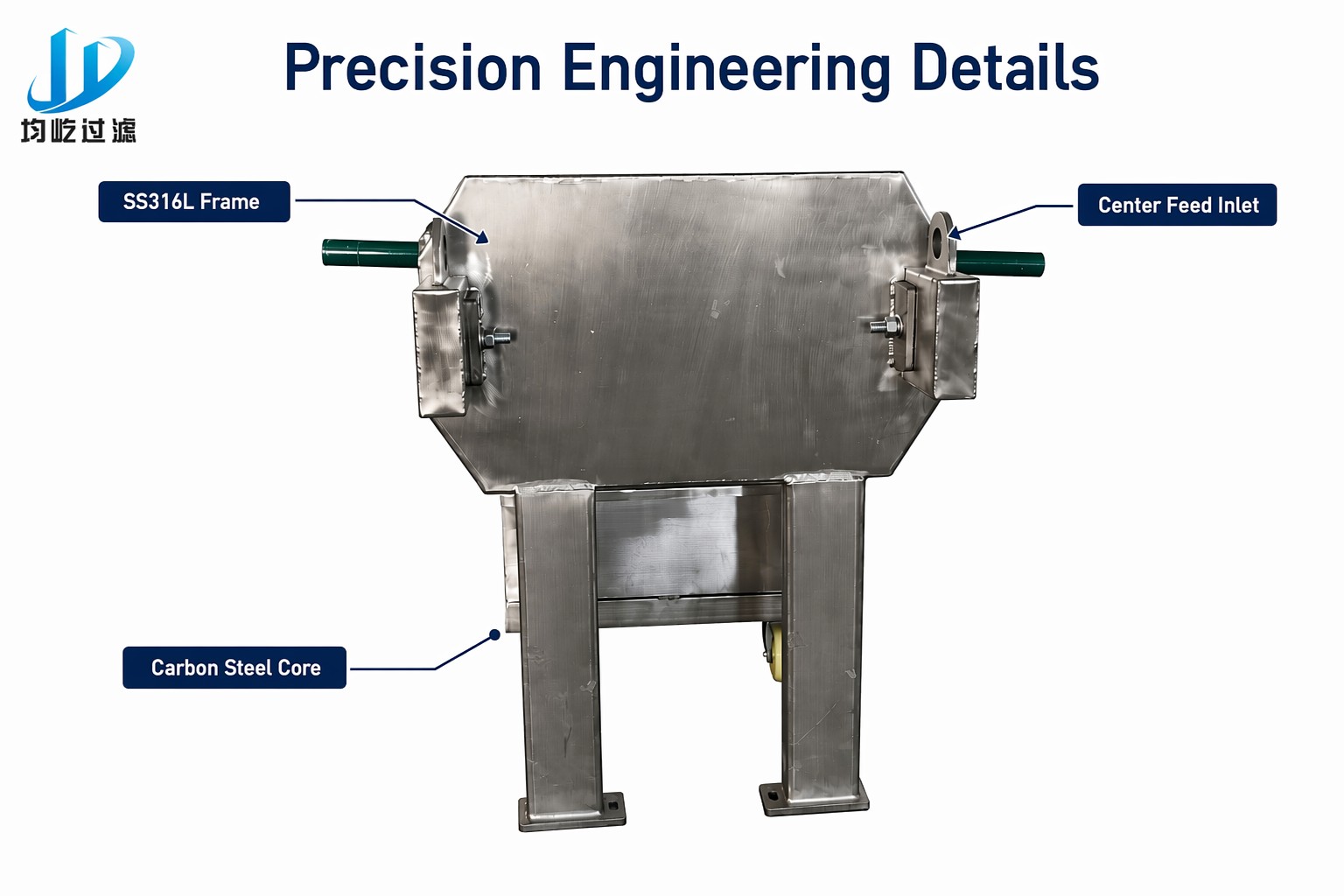

Composite corrosion-resistant frame: The main carbon steel frame is fully covered with SS316L stainless steel on the outside, which not only ensures structural strength but also resists corrosion in humid and weakly acidic or alkaline environments.
High-quality receiving tray: SS316L material receiving tray, equipped with moving rollers, facilitating the collection of dripping and leaking liquids and enabling flexible removal for cleaning.
Single dark-flow centralized discharge: The filtrate flows through the internal dark-flow channels and converges to a single outlet, facilitating subsequent collection or pipeline connection, resulting in a clean and orderly site.

Product advantages

Low investment and operation costs
The manual pressing structure eliminates the need for hydraulic pumps, motors and electronic control components, resulting in low purchase costs; there are no complex wear-prone parts, and daily maintenance only requires checking the sealing strips and jacks, significantly reducing maintenance costs.
Adaptable to harsh conditions
The filter plates (PP) and seals (EPDM) are resistant to most acids, bases and organic solvents; the SS316L coating of the frame can withstand moisture, salt fog and chemical splashes, and is suitable for non-strongly oxidizing corrosive environments.
Operational safety and cleanliness convenience
The sealed system reduces direct contact between operators and materials; the receiving tray pulley can be easily pulled out, making filter cloth replacement and tray surface cleaning more time-saving and labor-saving.
Balance of filtration accuracy and efficiency
The 380×380mm box-type filter plate is combined with EPDM sealed filter cloth to form a dense filter chamber. The filter cake has a low moisture content and the filtrate has high clarity. It is suitable for processes that require a certain recovery rate of solid phase or a high degree of clarity of the liquid phase.
Application fields

Chemical intermediates: Dewatering and washing of pigments, dyes, and resin pastes.
Food processing: Separation of solid residues during the extraction of plant materials, starch, juice, and refining of edible oil.
Environmental protection and water treatment: Sludge dewatering from industrial wastewater, filter press for electroplating wastewater sedimentation.
Minerals and Metallurgy: Reduction of waste from mineral processing and metal hydroxide slurries.
Fine chemicals: For small-scale and multi-batch production scenarios such as catalyst recovery and additive filtration.
