Vertical Candle Filter 7 Pcs Titanium Rods 60x1000mm 10bar Design Pressure Food Grade Application

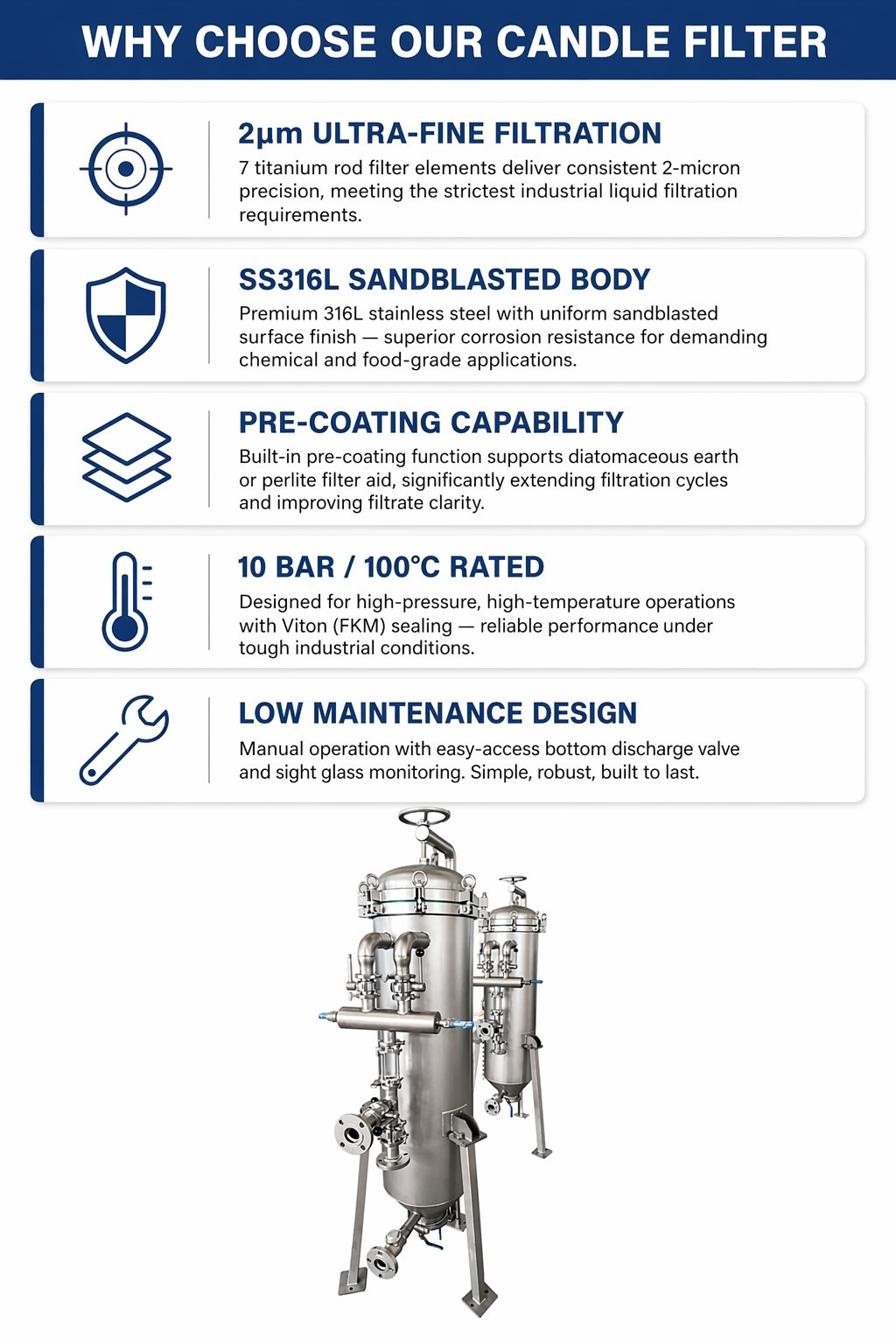

Product Features

• High Precision Filtration: Utilizes a 2μm titanium rod filter element combination to effectively intercept fine particles, ensuring clear effluent quality.

• Pre-coating Function Integration: Supports the pre-coating of filter aids (e.g., silica sand, activated carbon), significantly extending filter element lifespan and reducing replacement frequency.

• All Stainless Steel Construction: Cylinder and core components are manufactured from SS316L, offering excellent resistance to acids, alkalis, and chloride ion corrosion. The sandblasted surface finish enhances anti-fouling properties and aesthetic appeal.

• Broad Operating Condition Adaptability: Designed for a pressure of 10 bar and a temperature of 100℃, equipped with fluororubber sealing rings, making it suitable for medium-temperature, medium-pressure, and various chemical media applications.

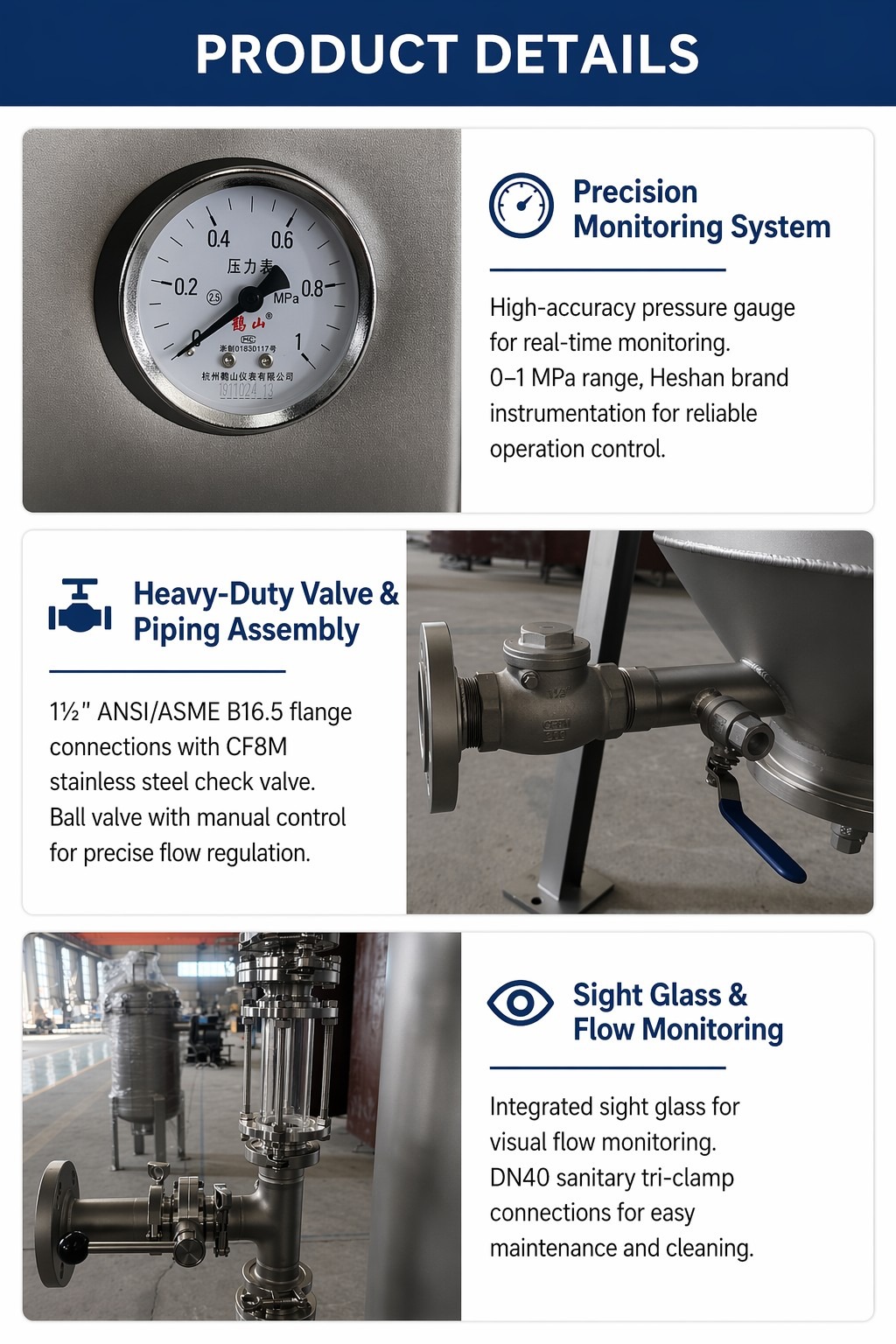

• Standard Interface Compatibility: Features a 1½” pipe size with 150# RF flanges complying with ANSI/ASME B16.5, facilitating quick and seamless integration with existing pipeline systems.

Product Advantages

• High Efficiency and Stability: The multi-core parallel configuration increases the filtration area, resulting in high flow rates and low pressure drops, while enabling extended continuous operation cycles.

• Economical and Durable: The titanium rod filter element possesses high mechanical strength and can be repeatedly cleaned and regenerated, significantly reducing consumable costs.

• Operational Flexibility: The pre-coating function allows for adjustment of the filter aid layer to accommodate different materials, adapting to either batch or continuous production processes.

• Safe and Reliable: Designed in strict accordance with ASME standards, it offers strong pressure-bearing capacity and excellent sealing performance, effectively eliminating leakage risks.

Application Fields

• Chemical Industry: Catalyst recovery, acid/alkali liquid purification, polymer solution filtration.

• Water Treatment: Industrial circulating water, oilfield reinjection water, pre-treatment filtration for ultrafiltration systems.

• Food and Beverage: Juice clarification, oil decolorization with filter aids, syrup refinement.

• Petroleum and Petrochemicals: Amine liquid filtration, produced water treatment, lubricating oil regeneration.

• Electroplating: High-purity water preparation, circulating filtration of electroplating solutions.
