Jacketed Candle Filter 5 Micron Precision PTFE Seal Automatic Blow Down Valve Bottom

Product Features
1. Constant Temperature Jacket Design
An insulation jacket structure is added to the outside of the equipment cylinder, allowing hot media to be introduced to maintain a constant filtration temperature. This effectively prevents the material from cooling, crystallizing, solidifying, or increasing viscosity, ensuring a smooth and efficient filtration process. The designed temperature is up to 150℃, and the working temperature is 85-90℃, suitable for various material processing conditions that require constant temperature treatment.

2. Large Filtration Area Design

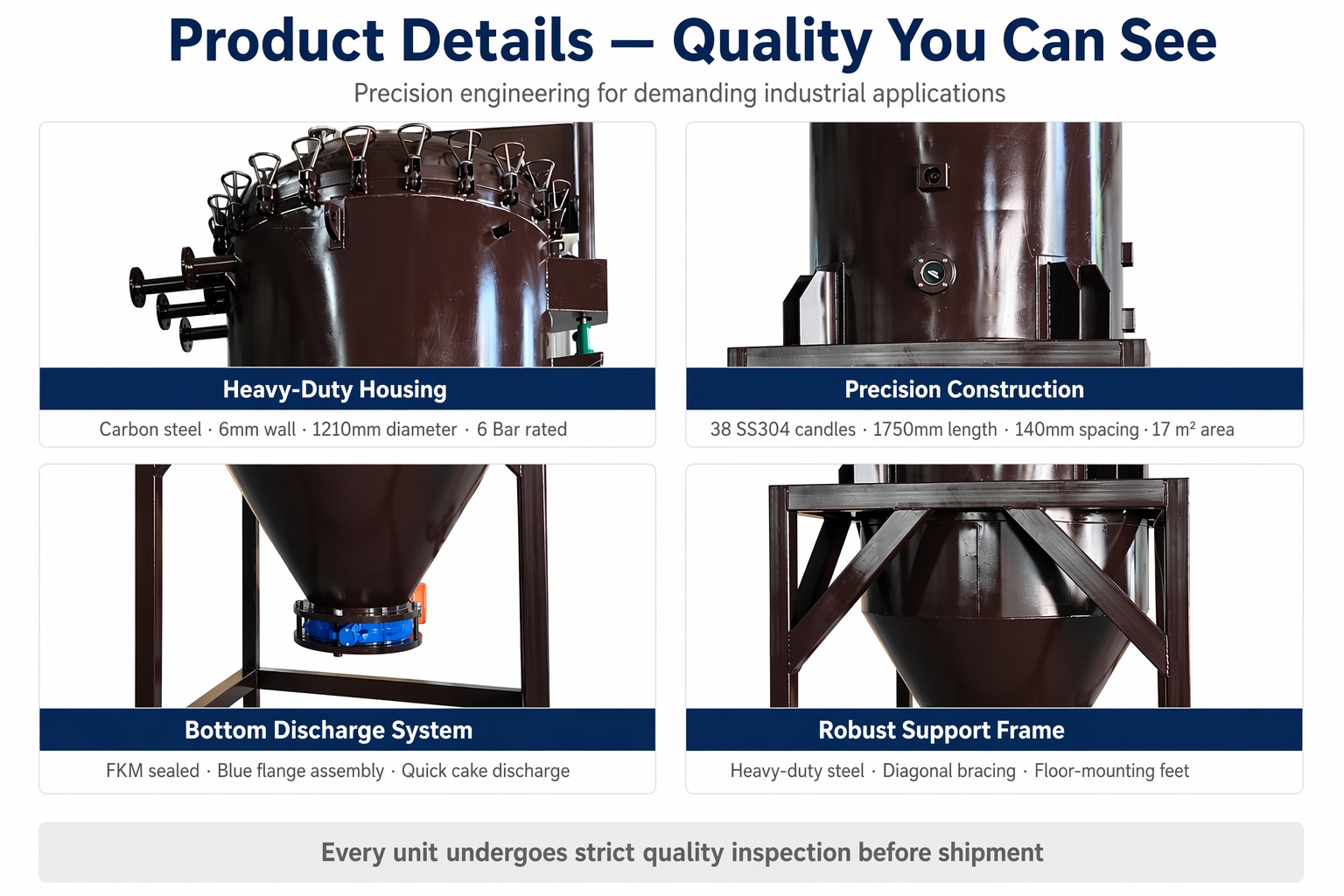

38 stainless steel filter elements are densely arranged, with a total filtration area of 17m². The filter element length is 1750mm, and the filter element spacing is 140mm. The structure is compact and has strong filtration capacity, suitable for filtering materials with high solid content.

3. High Precision Filtration
The filtration accuracy is up to 5μm, which can precisely retain tiny solid particles, ensuring clear filtrate quality and meeting the strict requirements of the fine chemical, food and beverage industries for filtration quality.

4. High-Quality Sealing and Durable Materials
The cylinder wall thickness is 6mm, with a design pressure of 6 bar (0.6Mpa) and a working pressure of 4 bar (0.4Mpa). The equipment has strong pressure-bearing capacity; the cover seal uses fluorine rubber, which is resistant to high temperatures and corrosion, ensuring reliable sealing performance.

5. Automated Sludge Discharge System
A bottom automatic pneumatic sludge discharge valve is equipped, enabling automated sludge discharge operations, reducing manual intervention and improving production efficiency.

Product Advantages
1. Temperature Stabilization Guarantee, Preventing Material Solidification
The jacket insulation design enables the equipment to maintain the material flow state even in low-temperature environments, especially suitable for high-viscosity, prone-to-crystallization, or materials requiring specific temperature treatment. It avoids filter element blockage and production interruptions caused by temperature fluctuations.

2. Sealed Operation, Environmental Protection, No Leakage
The fully sealed filtration system has no risk of material leakage and no environmental pollution. It is suitable for handling volatile, toxic, or odoriferous media.

3. Excellent Filter Element Regeneration Performance
SS304 stainless steel filter elements combined with polyester filter cloth have high mechanical strength and good corrosion resistance. They can be regenerated through online backwashing. The bottom pneumatic sludge discharge design ensures thorough sludge detachment, resulting in good filter element regeneration and extended service life.

4. Stable Operation, Low Maintenance Cost
The equipment has a simple structure with no complex transmission components, resulting in low failure rates; the filter element material is durable, with low replacement frequency, and the overall operating cost is economical.

Application Domains
Chemical Industry: Aminoliquid filtration, catalyst recovery, sulfuric acid filtration, polyol, epoxy resin, potassium carbonate, polyethylene glycol, etc. for chemical material solid-liquid separation

Food and Beverage: Juice clarification, sugar syrup filtration, edible oil refining filtration, alcohol filtration, gelatin filtration, etc.

Wastewater Treatment: Electronic wastewater treatment, printing and dyeing wastewater treatment, chemical wastewater treatment, etc. in environmental protection fields

Metal Processing: Cleaning agent filtration, cooling oil purification, metal rolling oil recovery, etc.

Petrochemical Industry: Aminoliquid circulation filtration, catalyst recovery, etc. for high-precision filtration scenarios with high filtration requirements
