Automatic Pneumatic Blow Down Valve Candle Filter Filtration Area 17 Square Meters

Automatic Pneumatic Blow Down Valve Candle Filter Filtration Area 17 Square Meters Featured Image
  • Automatic Pneumatic Blow Down Valve Candle Filter Filtration Area 17 Square Meters
  • Automatic Pneumatic Blow Down Valve Candle Filter Filtration Area 17 Square Meters
  • Automatic Pneumatic Blow Down Valve Candle Filter Filtration Area 17 Square Meters
  • Automatic Pneumatic Blow Down Valve Candle Filter Filtration Area 17 Square Meters
  • Automatic Pneumatic Blow Down Valve Candle Filter Filtration Area 17 Square Meters
  • Automatic Pneumatic Blow Down Valve Candle Filter Filtration Area 17 Square Meters

Brief Introduction:

This model, designated as JYCFS-17M2, is a candle-type filter device that is highly efficient for solid-liquid separation and is suitable for industrial liquid filtration scenarios.The product adopts a candle-type filter element structure, with a filtration area of 17 square meters.It features high throughput, high precision, and easy backwashing.The main body material is carbon steel, and the filter element is made of SS304 stainless steel.The overall structure is sturdy and durable, suitable for clarification and impurity removal processes in chemical, environmental protection, food, and general industrial liquids.

Download as PDF

Product Detail

Product Features

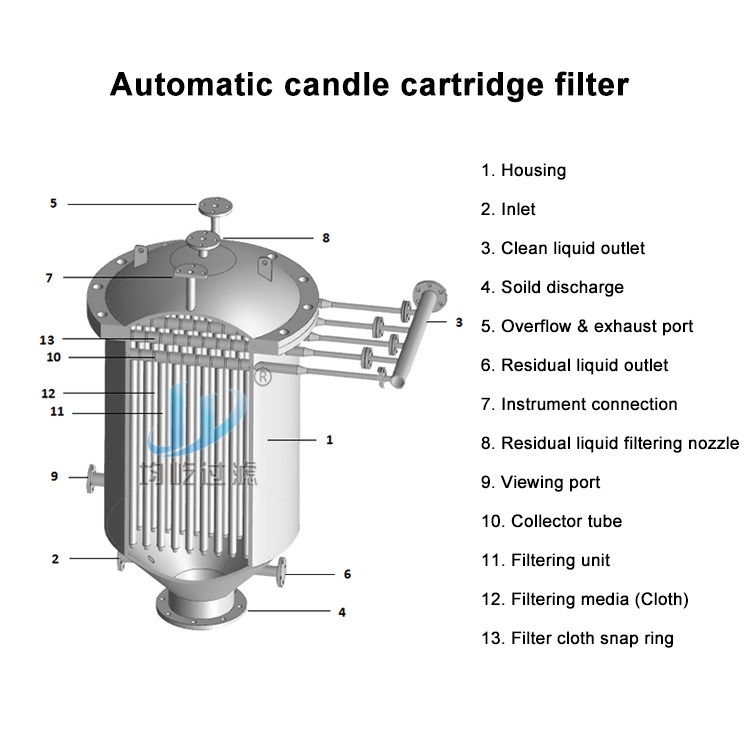

photobank (2)
1. Large filtration area:
Effective filtration area of 17 m², equipped with 38 filter elements (length 1750 mm), delivering high processing capacity.
2. High-precision filtration:
Filtration accuracy down to 5 microns, meeting fine separation requirements.
3. Temperature and pressure resistant design:
Design pressure of 6 bar and design temperature of 150°C, suitable for various operating conditions.
4. Automatic blowdown system:
Pneumatic blowdown valve at the bottom enables convenient blowdown operation with reduced manual intervention.
5. Reliable sealing:
The top cover uses a fluor rubber sealing ring, resistant to high temperatures, oil, and corrosion.

Product advantages
1.Compact structure:
The cylinder diameter is 1210mm, the filter element spacing is 140mm, with high space utilization and small floor area.
2. High anti-fouling efficiency:
The candle-type structure ensures thorough backwashing, making the filter cake easy to fall off and the filter element has strong regeneration capability.
3. Reasonable material combination:
The outer shell is made of carbon steel while the filter core is SS304. This design ensures both strength and corrosion resistance, resulting in excellent cost-effectiveness.
4. Robust supporting structure:
 Equipped with carbon steel support frame, installation is stable and quick on-site.

Application fields
1


Chemical Industry Liquid Purification


2


Removal of suspended solids from wastewater for environmental protection


3


Food and Beverage Clarification and Filtration


4


Petroleum and lubricant filtration


5


Treatment of industrial circulating liquids such as electroplating solutions and cutting fluids


6


Pre-filtration or fine filtration of general industrial water


Parameter Table
Company Profile
公司介绍1
公司介绍2
3
FAQ

Q: Are you manufacturer?
A: Yes. We are experienced manufacturer of filter equipment.
Q:What products you provide?
A: We produce more than 200 different models of the filter. The main products are the Press Filter/Bag Filter Housing/Automatic self cleaning filter/Basket filter/Magnetic filter/ Candle filter/Leaf filter/Cartridge filter housing/Filter Plate/Filter Cloth/Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc.
Q: How to select the type you needed?
A: We will ask you some information: solid liquid kind, usage, flow rate, solid content
percentage, working temperature & pressure, etc. We have professional technical team which will work together with our sales to help you choose the suitable machine for you.
Q. Is it easy to operate for the new user ?
R. A: Yes. We offer you manual book and operating video. When you have any questions during using, we will answer you within 24 hours. For large projects, we can also send our engineers to your site for commissioning and training.
Q: What’s MOQ?
A: 1 PCS.
Q: Do you accept OEM?
A: Yes.
Q:Quality Warranty.
A:12 months after the installation and commission or 18 months after it has been delivered to the site of the customer.
