Single Bag Filter Stainless Steel 304SS with DN50 Flange Connection

Product Features

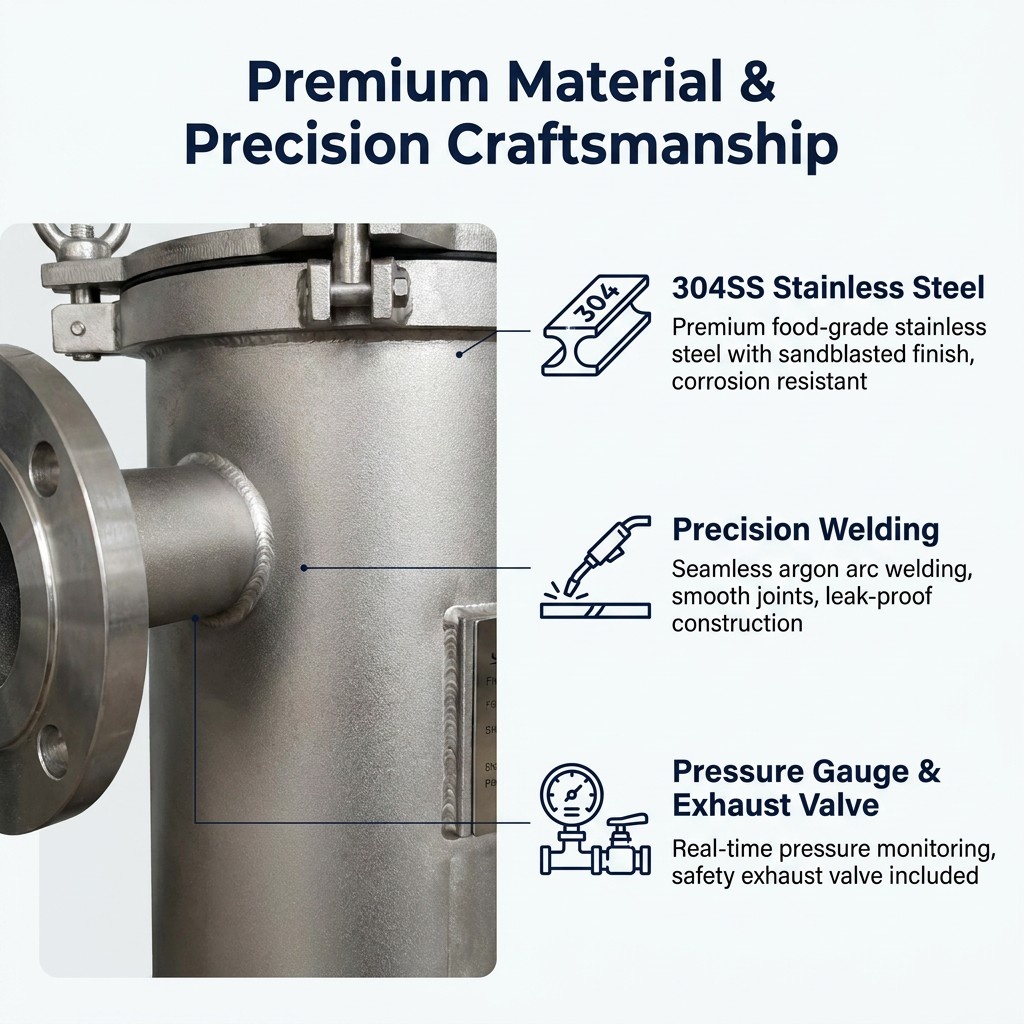

• All Stainless Steel Structure
  The cylinder body, mesh basket, and key components are all made of 304SS, offering excellent corrosion resistance and rust prevention. Suitable for long-term use in humid, weakly acidic, or weakly alkaline working conditions.

• Sandblasting Surface Treatment
  The surface undergoes uniform sandblasting, resulting in a matte texture that is fingerprint-resistant and easy to clean. This treatment also enhances the equipment’s scratch resistance.

• Dual Pressure Standard
  Working pressure: 0.6 MPa | Design pressure: 1.0 MPa
  The ample safety margin makes it suitable for working conditions with pressure fluctuations.

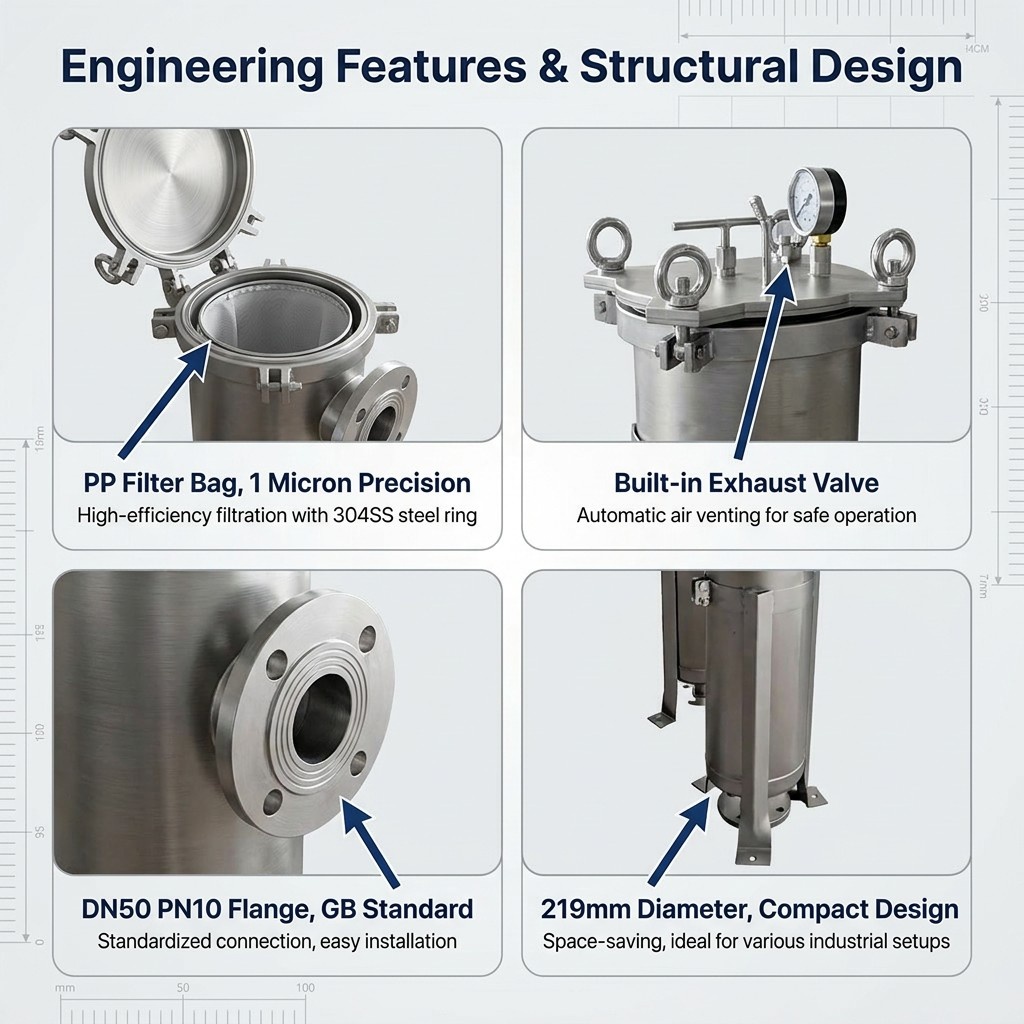

• Precision Filtration Assembly
  PP filter bags combined with 304 steel rings ensure excellent sealing performance. With a filtration accuracy of 1 micron, it effectively intercepts tiny particles, safeguarding the cleanliness of downstream fluids.

• Convenient Bag-Changing Design
  Top-opening quick-release structure (customized based on actual design) enables tool-free filter bag replacement. Short single maintenance time reduces downtime and production losses.

Product Advantages

• Material Compliance
  304SS material meets food-grade contact and industrial hygiene requirements, making it directly applicable in industries such as beverages, brewing, cosmetics, and others with strict material standards.

• Reliable Sealing Performance
  The nitrile rubber sealing ring offers outstanding oil and water resistance, maintaining long-term elasticity at temperatures up to 60°C, effectively eliminating leakage risks.

• Extreme Versatility
  Equipped with national standard flanges compatible with DN50 diameter for mainstream domestic pipelines. Custom conversion joints are also available to meet export or non-standard connection needs.

• Controllable Filtration Cost
  Large-sized filter bags (180×810 mm) provide a substantial effective filtration area and high dust-holding capacity, extending each bag’s service life and reducing consumable replacement frequency.

• Maintains Clarity
  The cylinder opening is appropriately sized, allowing for easy visual inspection of the filter bag’s status, facilitating clear and routine daily checks.

Application Fields

• Water Treatment
  Removal of suspended solids in cooling circulating water, RO pretreatment, mine water, reclaimed water reuse, etc.

• Chemical & Fine Chemicals
  Filtration of impurities in liquid raw materials such as solvents, coatings, inks, resins, adhesives, etc.

• Food & Beverages
  Clarification and filtration of juices, alcoholic beverages, edible oils, syrups, seasonings, etc. (Complies with food contact safety requirements).

• Electronics & Electroplating
  Protective filtration prior to the preparation of cleaning solutions for circuit boards, electroplating solutions, and pure water.

• Machining Processing
  Circulation purification of industrial liquids such as cutting fluid, cleaning agents, and grinding fluid.
