6 Bag Cartridge Filter Housing SS316 100um PP Bags 6 Inch ANSI Bottom Inlet Outlet
Product features
The cylinder body is made of SS316 stainless steel, which has excellent corrosion resistance and is suitable for various industrial liquid filtration scenarios.
The wall thickness of the cylinder reaches 5mm, with high structural strength and capable of withstanding a design pressure of 10 bar.
The sandblasting surface treatment makes the equipment appearance uniform and also helps to enhance the surface corrosion resistance.

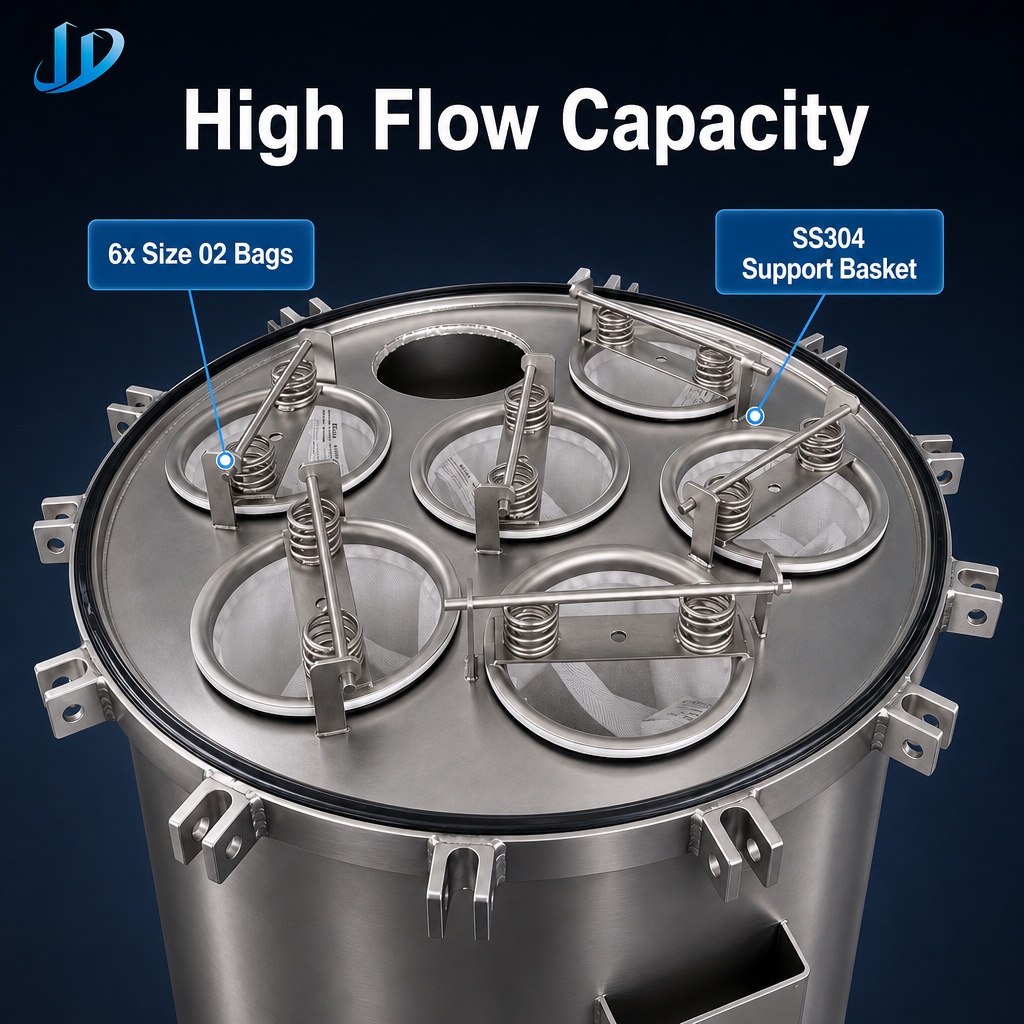

The 6-bag configuration is provided in a single unit of the equipment, offering a large filtration area, suitable for continuous filtration requirements of medium to large flow rates.
The bottom-in-bottom-out inlet and outlet layout facilitates pipeline connection and on-site installation.
The 6-inch ANSI standard flange is compatible with common industrial piping systems.
The sealing material is nitrile rubber, which has stable sealing performance in common oil and water-based media.
The equipment is equipped with a common pressure gauge to facilitate observation of the operating pressure difference.
Product advantages
The SS316 cylinder is designed with a 5mm wall thickness, ensuring reliable structural safety for the equipment under a 10bar design pressure, making it suitable for long-term stable operation.
The 6-bag design maintains the filtration efficiency while reducing the demand for single-bag filters, which helps simplify the piping and lower maintenance points.
The 100um PP filter bags are easy to replace and have controllable operating costs.
The bottom-in-bottom-out structure facilitates uniform distribution of the medium, reducing dead corners.
The 6-inch ANSI flange has strong versatility and is convenient for connecting to existing pipeline systems.
The overall configuration can be customized according to the actual working conditions of the customer.
Application fields
Liquid filtration in water treatment processes.
Chemical liquid filtration.
Coating and ink filtration.
Electroplating liquid filtration.
Cleaning liquid filtration.
Lubricating fluid filtration.
Medium to large flow liquid clarification and impurity interception processes.
Food and beverage industry filtration.
Product selling points
The SS316 stainless steel cylinder has a 5mm wall thickness, which is corrosion-resistant and structurally reliable.
With a 6-bag configuration, each unit has a large processing capacity, reducing equipment footprint and the complexity of the piping system.
The filter bags are 100um in size, with moderate precision and easy replacement.
The 6-inch ANSI bottom-in-bottom-out flange is convenient for installation and connection.
The design pressure is 10 bar, and the working pressure is 6 bar, meeting the requirements of conventional industrial pressures.
The nitrile rubber seal is compatible with a variety of common media.
