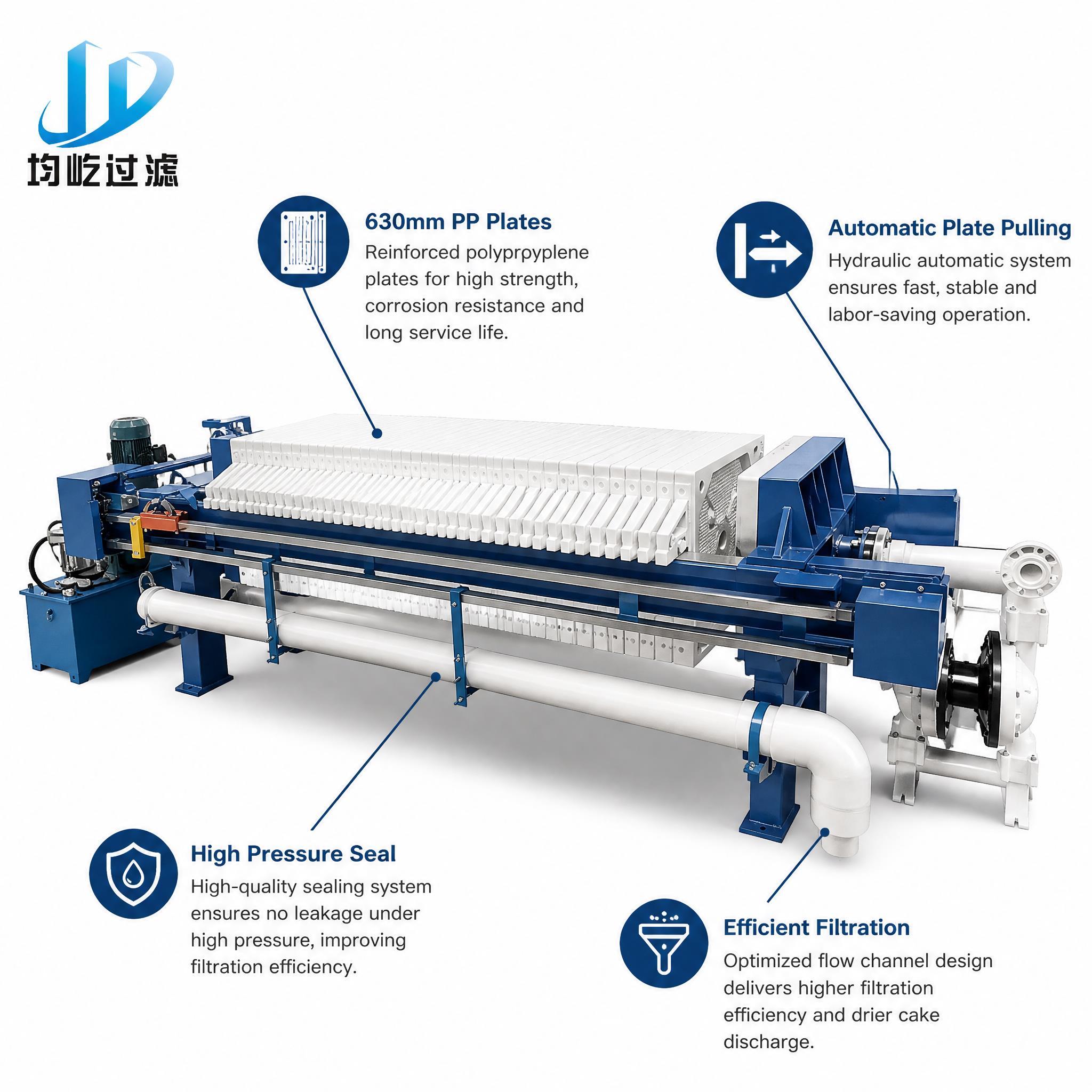

Hydraulic Chamber Filter Press XMZ35 630 45 PP Plates 22kw Single Phase for Poultry Manure Filtration

Product features

• The filter plate is made of PP material, with an outer diameter of 630×630mm and a thickness of 55mm.

• It is equipped with hydraulic drive and automatic plate pulling function.

• The operation mode is manual feeding, suitable for filtration operations that require manual control of the feeding process.

• The body is made of carbon steel, with a stable structure and the paint color can be determined according to actual needs.

• The feeding method is from the middle, and it is combined with a double clear-flow plastic water tank, which is convenient for the discharge and observation of the filtrate.

• The entire machine is used in conjunction with an air-driven diaphragm pump, forming a pipeline process where the air-driven diaphragm pump feeds the filter press.

Product advantages

• Adopting a hydraulic box-type open-flow design, with a design pressure of 0.8 Mpa, it can meet the solid-liquid separation requirements under certain pressure conditions.

• The cylinder diameter is 160mm, providing stable power for pressing the filter plates.

• The automatic plate-retracting function can reduce the manual unloading operation intensity and improve the working efficiency.

• The accompanying pneumatic diaphragm pump is made of PP material, which has good corrosion resistance and is suitable for the transportation of various materials.

• The piping process of the entire machine is simple, and the pneumatic diaphragm pump is directly connected to the filter press, reducing the intermediate links.

Application fields

• Suitable for solid-liquid separation treatment of materials such as poultry manure water and sewage.

• Can be used in filtration scenarios with certain corrosiveness or where metal contamination needs to be avoided.

• Can be applied to other similar suspension liquid filtration operations.

• Can be used in the sludge dewatering process.

• Can be used in industrial wastewater treatment and other operations requiring box-type filter presses for solid-liquid separation.
Product selling points

• The complete set of equipment includes the filter press main unit and the pneumatic diaphragm pump, forming an integrated system for feeding and filtration.

• The hydraulic drive is combined with an automatic pull plate, reducing the burden on manual operation.

• The designed pressure is 0.8 Mpa, and the cylinder diameter is 160mm, ensuring stable compression force.

• The intermediate feeding is combined with a double clear-flow plastic water tank, facilitating the observation of the filtrate condition.

• The entire machine has a carbon steel body, with a reliable structure.

• The equipment is designed for materials such as poultry manure water and sewage, and is highly practical.
