Factory Automatic Auto Filter Press With Plate Puller System 0.6-1.0 Mpa custom

Brief Introduction:

This product is an automatic plate-and-frame recessed plate filter press, equipped with 870×870 mm filter plates. It is a highly efficient and automated solid-liquid separation device, suitable for dewatering suspension liquids in industries such as environmental protection, chemical engineering, mining, and food processing.

Send email to us Download as PDF

Product Detail

Product Features

1.Automatic Plate Pulling + Vibrating Plate System:

PLC automatically controls the sequential pulling of each filter plate, combined with a high-frequency vibrating mechanism to assist cake discharge, ensuring more complete filter cake release.

2.Fully Automatic Operation:

Integrates processes including feeding, plate pulling, plate vibrating, and cake discharge. Supports one-key start and automatic cycles based on timed intervals or differential pressure.

3.Large Volume and High Filtration Area:

Filtration area ranges from 30 to 80 , and chamber volume from 450 to 1200 L, accommodating varying batch processing capacities.

4.High-Strength Filter Plate:

870×870 mm reinforced polypropylene filter plate, corrosion-resistant and pressure-resistant, with excellent chamber sealing performance.

Product advantages

1.Labor Saving:

Fully automatic plate pulling and vibrating plate discharge eliminate the need for manual cleaning of each filter plate. A single operator can manage multiple units.

2.Higher Efficiency:

Automatic cyclic operation ensures short cycle times for filtration -plate pulling -plate vibrating -plate closing, increasing throughput per unit time by over 30%.

3.Durable and Easy to Maintain:

The rails and plate pulling mechanical components feature wear-resistant design. The sealing surfaces of the filter plates offer long service life, and maintenance intervals are extended.

4.Flexible Customization:

The number of filter plates is optional, with filtration area and chamber volume customizable according to requirements, adapting to different site conditions and working environments.

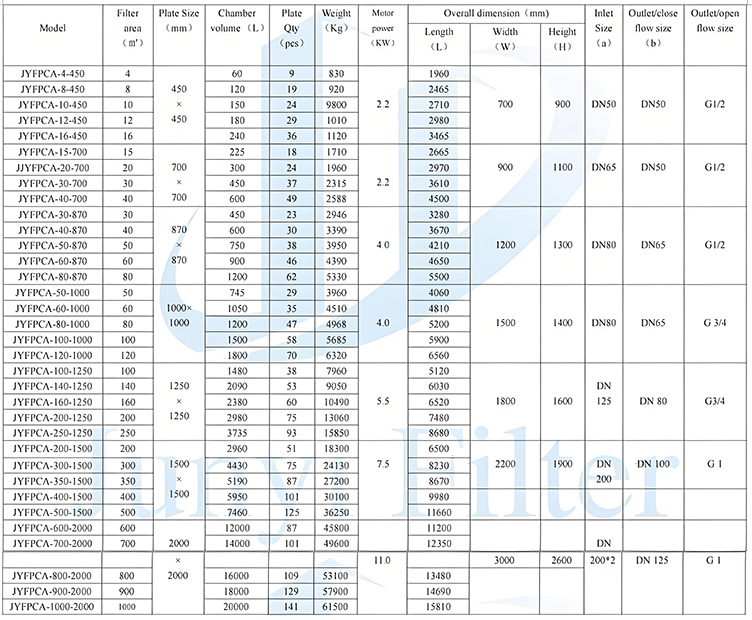

Parameter Table

Application fields

1	Environmental Wastewater Treatment: Sludge dewatering for municipal sewage, industrial wastewater, printing and dyeing wastewater, electroplating wastewater, and livestock farming wastewater.
2	Mining & Metallurgy: Tailings dry stacking, concentrate dewatering in mineral processing, coal washing wastewater treatment, and smelting waste residue filtration.
3	Chemical Industry: Solid-liquid separation in the production of fine chemicals, dyes, pigments, titanium dioxide, and inorganic salts.
4	Food & Beverage: Juice clarification, wine/liquor filtration, starch dewatering, and separation of plant extract residues from liquids.
5	Building Materials: Ceramic slurry dewatering, stone processing wastewater treatment, and kaolin dewatering.
6	Oil & Energy: Oilfield drilling mud treatment and solid separation in waste oil recovery.

Company Profile

FAQ

Q: Are you manufacturer?

A: Yes. We are experienced manufacturer of filter equipment.

Q:What products you provide?

A: We produce more than 200 different models of the filter. The main products are the Press Filter/Bag Filter Housing/Automatic self cleaning filter/Basket filter/Magnetic filter/ Candle filter/Leaf filter/Cartridge filter housing/Filter Plate/Filter Cloth/Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc.

Q: How to select the type you needed?

A: We will ask you some information: solid liquid kind, usage, flow rate, solid content

percentage, working temperature & pressure, etc. We have professional technical team which will work together with our sales to help you choose the suitable machine for you.

Q. Is it easy to operate for the new user ?

R. A: Yes. We offer you manual book and operating video. When you have any questions during using, we will answer you within 24 hours. For large projects, we can also send our engineers to your site for commissioning and training.

Q: What’s MOQ?

A: 1 PCS.

Q: Do you accept OEM?

A: Yes.

Q:Quality Warranty.

A:12 months after the installation and commission or 18 months after it has been delivered to the site of the customer.
