870 automatic filter press machine with hydraulic closing system

870 automatic filter press machine with hydraulic closing system Featured Image
  • 870 automatic filter press machine with hydraulic closing system
  • 870 automatic filter press machine with hydraulic closing system
  • 870 automatic filter press machine with hydraulic closing system
  • 870 automatic filter press machine with hydraulic closing system
  • 870 automatic filter press machine with hydraulic closing system
  • 870 automatic filter press machine with hydraulic closing system

Brief Introduction:

The automatic plate-moving box-type filter press is an efficient, intermittent operation solid-liquid separation equipment. The entire machine can achieve full-process automation of “pressing, filtering, plate pulling, and discharging”, and is widely used in solid-liquid separation processes in industries such as chemical engineering, mining, food, and environmental protection.

Download as PDF

Product Detail

Product Features





1.Fully automatic plate pulling system:
Automatically pulls out each filter plate one by one, with fast discharging speed and accurate positioning.
2.Factory direct supply, flexible customization:
From the number of filter plates, filtration area to machine material, all can be designed according to customer requirements.
3.High-quality filter plate material:
The filter plate is made of high-strength reinforced polypropylene, which is corrosion-resistant, heat-resistant, lightweight and has a long service life.
4.Hydraulic clamping device:
The clamping force is high and adjustable, ensuring reliable sealing and no leakage during the filtration process.

Product advantages








1.Reduce labor costs:
Automatic plate pulling and unloading significantly reduce the need for manual intervention.
2.Enhance production efficiency:
The plate pulling speed can be adjusted, the single cycle time is short, and the processing volume per unit time is high.
3.Stable and reliable operation:
The core components are designed with wear-resistant and corrosion-resistant features, capable of operating in continuous environments, with a low failure rate.
4.Customized as needed, with controllable costs:
Avoid over-provisioning. Customize the model based on the actual material characteristics to reduce initial investment and operating costs.

Application fields
1


Mining and Metallurgy: Tailings dewatering, concentrate filtration, and smelting wastewater treatment.


2


Chemicals and Dyes: Solid-liquid separation of pigment intermediates, inorganic salts, and acidic and alkaline materials.


3


Environmental water treatment: Municipal sludge dewatering, industrial wastewater sludge concentration, riverbed dredging slurry treatment.


4


Food and Beverages: Starch, plant protein, clarified juice, filtration of wine waste residue.


5


Ceramics and Building Materials: Kaolin dehydration, recovery of ceramic slurry, wastewater treatment for stone processing.

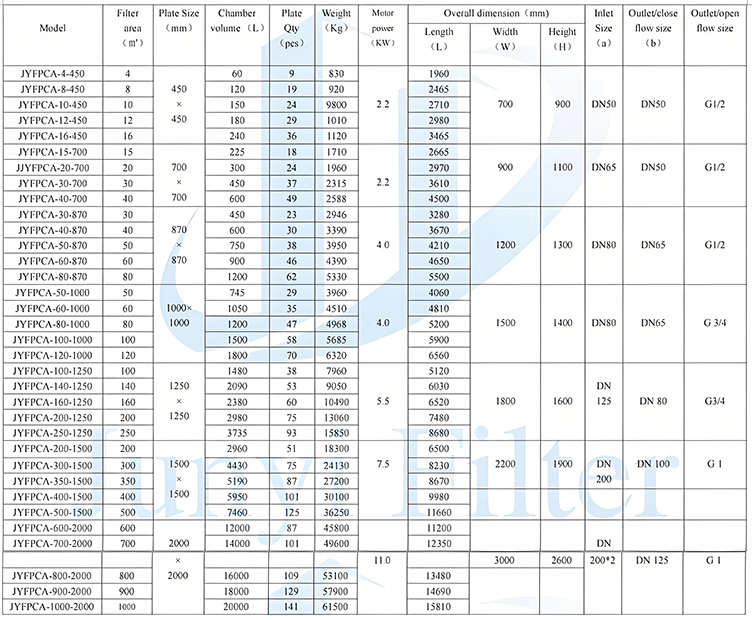

Parameter Table
自动拉板压滤机参数750
Company Profile
公司介绍1
2
3
FAQ
Q: Are you manufacturer?
A: Yes. We are experienced manufacturer of filter equipment.
Q:What products you provide?
A: We produce more than 200 different models of the filter. The main products are the Press Filter/Bag Filter Housing/Automatic self cleaning filter/Basket filter/Magnetic filter/ Candle filter/Leaf filter/Cartridge filter housing/Filter Plate/Filter Cloth/Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc.
Q: How to select the type you needed?
A: We will ask you some information: solid liquid kind, usage, flow rate, solid content
percentage, working temperature & pressure, etc. We have professional technical team which will work together with our sales to help you choose the suitable machine for you.
Q. Is it easy to operate for the new user ?
R. A: Yes. We offer you manual book and operating video. When you have any questions during using, we will answer you within 24 hours. For large projects, we can also send our engineers to your site for commissioning and training.
Q: What’s MOQ?
A: 1 PCS.
Q: Do you accept OEM?
A: Yes.
Q:Quality Warranty.
A:12 months after the installation and commission or 18 months after it has been delivered to the site of the customer.
