Custom SS304 Bag Filter Housing 219mm Dia 2mm Wall 50 Micron PE Filtration Unit

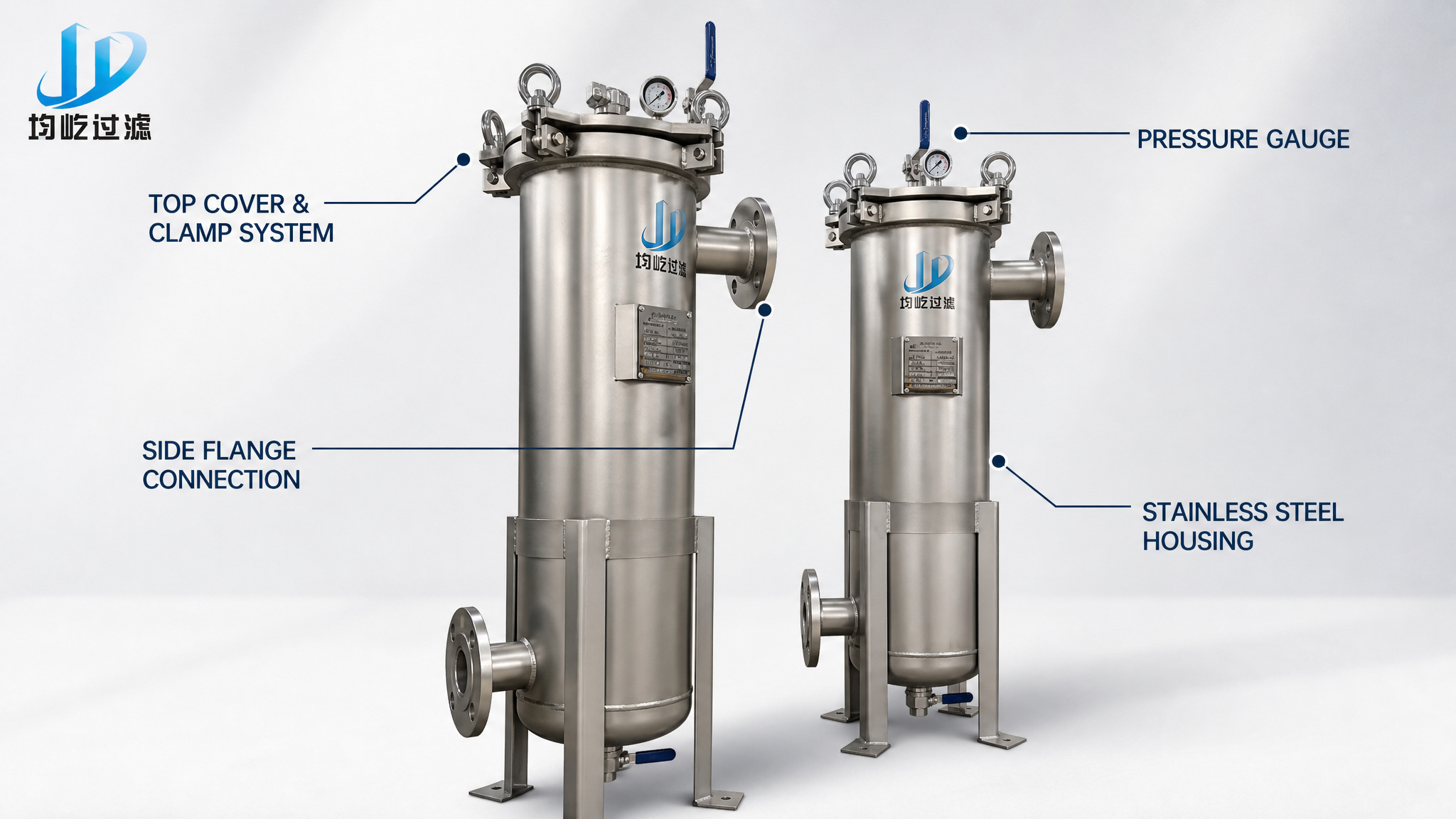

Product features
SS304 cylinder with sandblasting treatment, corrosion-resistant and with good strength
DN50 ANSI B16.5 flange, international standard, facilitating pipeline connection
Upward inlet and downward outlet 180-degree flow direction, filter bag is evenly loaded, right inlet and left outlet can be adjusted according to on-site layout
Nitrile rubber sealing ring, reliable sealing for oil, water-based and various chemical media
Top 1/2″ NPT vent port and bottom drain port, quick exhaust and drainage, short downtime for bag replacement
Adjustable height legs, suitable for uneven ground
180×810 mm standard No. 2 bag, ample filtration area, good steel ring sewing and shaping
Product advantages
The 50-micron PE filter bag offers a balance between precision and flow rate, with moderate replacement costs;
The 150 PSI design pressure is higher than that of conventional low-pressure models, providing sufficient safety margin;
The ANSI flange is equipped with a DN50 diameter, and the outlet is compatible with pipeline modification for ease of use;
The combination of venting, sewage discharge, and adjustable legs enables single-person completion of daily maintenance.
Application fields
Chemical solvents and coatings, process water and circulating water, liquid materials such as syrup and edible oil, electrophoretic paint and pretreatment solution, lubricating oil and cutting fluid, etc., all require filtration of impurities in liquids.

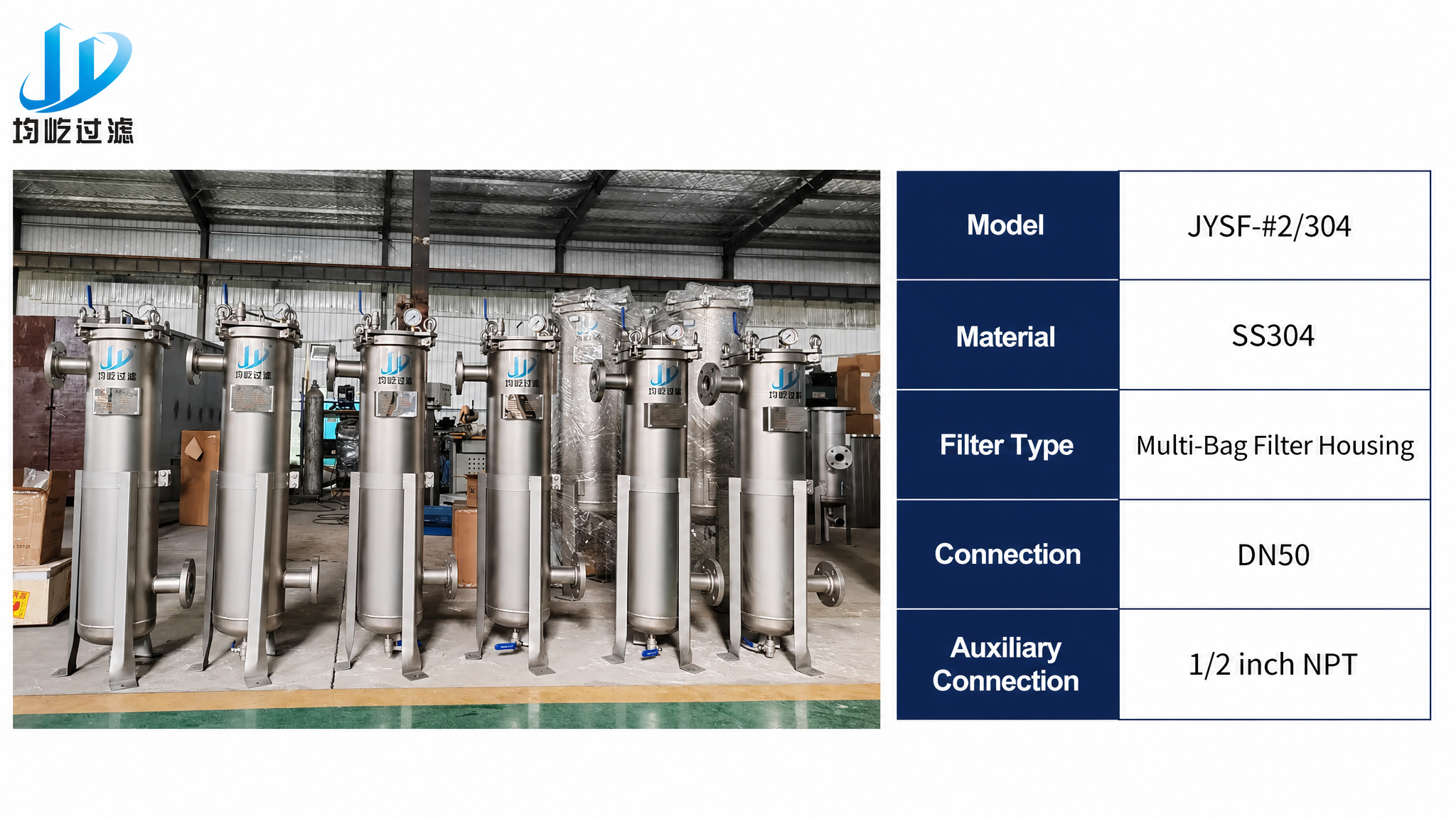

Parameter Table
