Factory Direct 19 Bag Horizontal Filter 150PSI SS304 for Paint Filtration

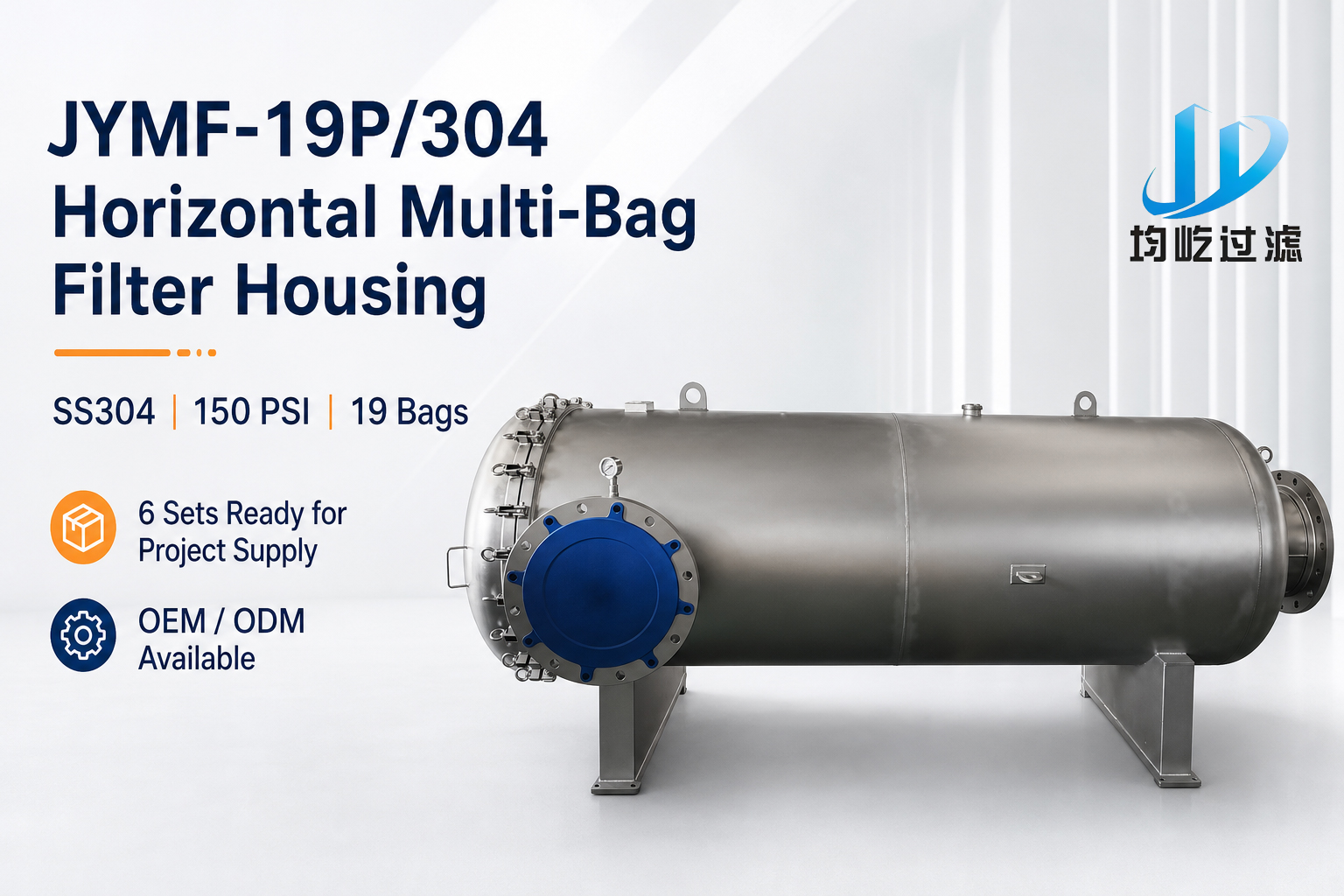

Product features

1.High-flow horizontal structure: It adopts a horizontal cylinder layout, combined with a 40-inch tank diameter and a 6mm wall thickness design. In a limited space, it achieves a very large filtration area. The 19-bag parallel configuration is paired with 16-inch large-diameter flange inlet and outlet, and a single unit of this equipment can meet the high throughput requirements of the production line, effectively reducing the complexity of pipelines and the floor space required when multiple units are connected in parallel.

2.Convenient maintenance design: The equipment’s top and sides are equipped with lifting ears, which are combined with lifting ring bolts and a rocker mechanism to achieve the quick opening and locking of the head. Operators can complete opening the cover, replacing the filter bags and conducting internal inspections without using special heavy tools, significantly reducing the downtime for maintenance. The carbon steel base (4-inch × 8-inch pipe material, welded or bolted connection) is specially designed for forklift handling, facilitating the flexible relocation and installation positioning of the equipment within the factory.

3.Reliable sealing and materials: The sealing ring uses nitrile rubber (NBR), which has good oil resistance and chemical resistance for common industrial fluids. The filter bags are made of PE material, with a plastic mouth ring combined with a full hot-melt welding process, avoiding the risk of pinhole leakage in traditional sewn filter bags, ensuring the integrity and consistency of the 100-micron filtration accuracy. The SS304 filter basket provides uniform support for the filter bags, preventing them from cracking or fiber migration under high pressure differences.

4.Complete interface configuration: In addition to the 16-inch main inlet and outlet, the equipment is also equipped with a 2-inch FNPT exhaust port, a clean end and a dirty end each with a 2-inch FNPT drainage port, as well as a 1/2-inch FNPT reserved port, facilitating the connection of pressure gauges, sampling valves or sewage pipelines, meeting the all-round needs for on-site instrument monitoring and maintenance operations.

Product advantages

1.High-throughput low-drop performance: 19 bags connected in parallel significantly increases the effective filtration area, reducing the flow rate load of a single bag under the same flow rate, effectively controlling the rate of pressure drop increase, extending the filter bag replacement cycle, and reducing material costs and the frequency of manual intervention.

2.International standard compatibility: The combination of ASME B16.5 flange standard and 150 PSI design pressure enables this equipment to seamlessly integrate into project systems that follow American standards for pipelines, reducing the difficulty of adapting for cross-border engineering or foreign-funded projects.

3.Structural durability: The 6mm thick SS304 cylinder has ample safety margin in withstanding pressure fluctuations and pipeline stresses. The sandblasted surface treatment not only enhances the appearance texture but also helps maintain the material stability in humid or slightly corrosive environments.

Application fields

1.Petrochemicals and Oils: Purification and separation of lubricating oils, hydraulic oils, fuel oils, and various chemical solvents.

2.Coatings and Inks: Pre-filtration of paints, resins, adhesives, and color pastes, as well as clarification of finished products.

3.Industrial Water Treatment: Solid-liquid separation and pre-treatment for cooling circulating water, industrial wastewater, electroplating solutions, and cleaning solutions.

4.Mechanical Processing: Centralized filtration and recirculation purification of cutting fluids, grinding fluids, and quenching oils.

5.Food and Beverages: Clarification filtration of vegetable oils, syrups, juices, and drinking water used in brewing.

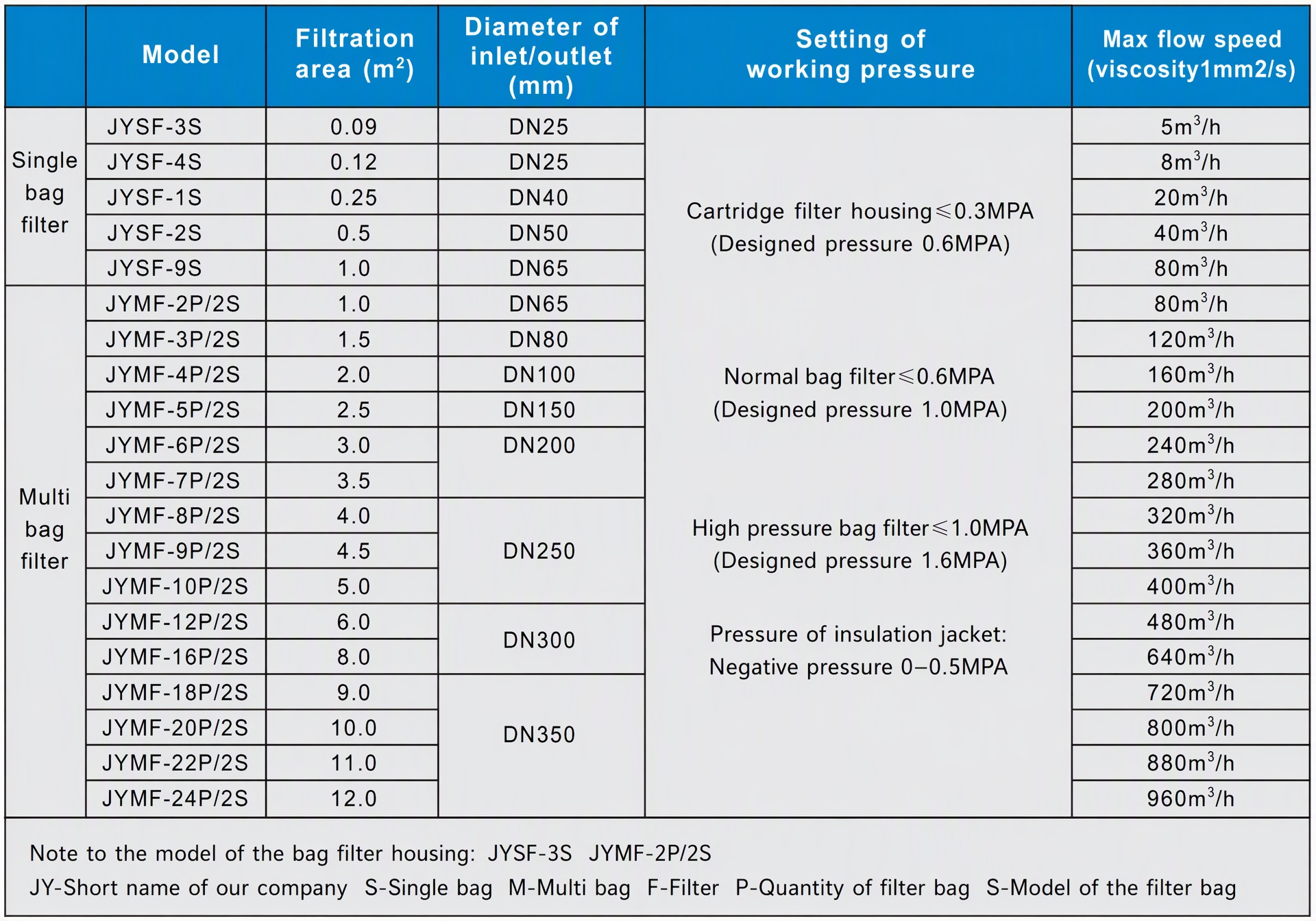

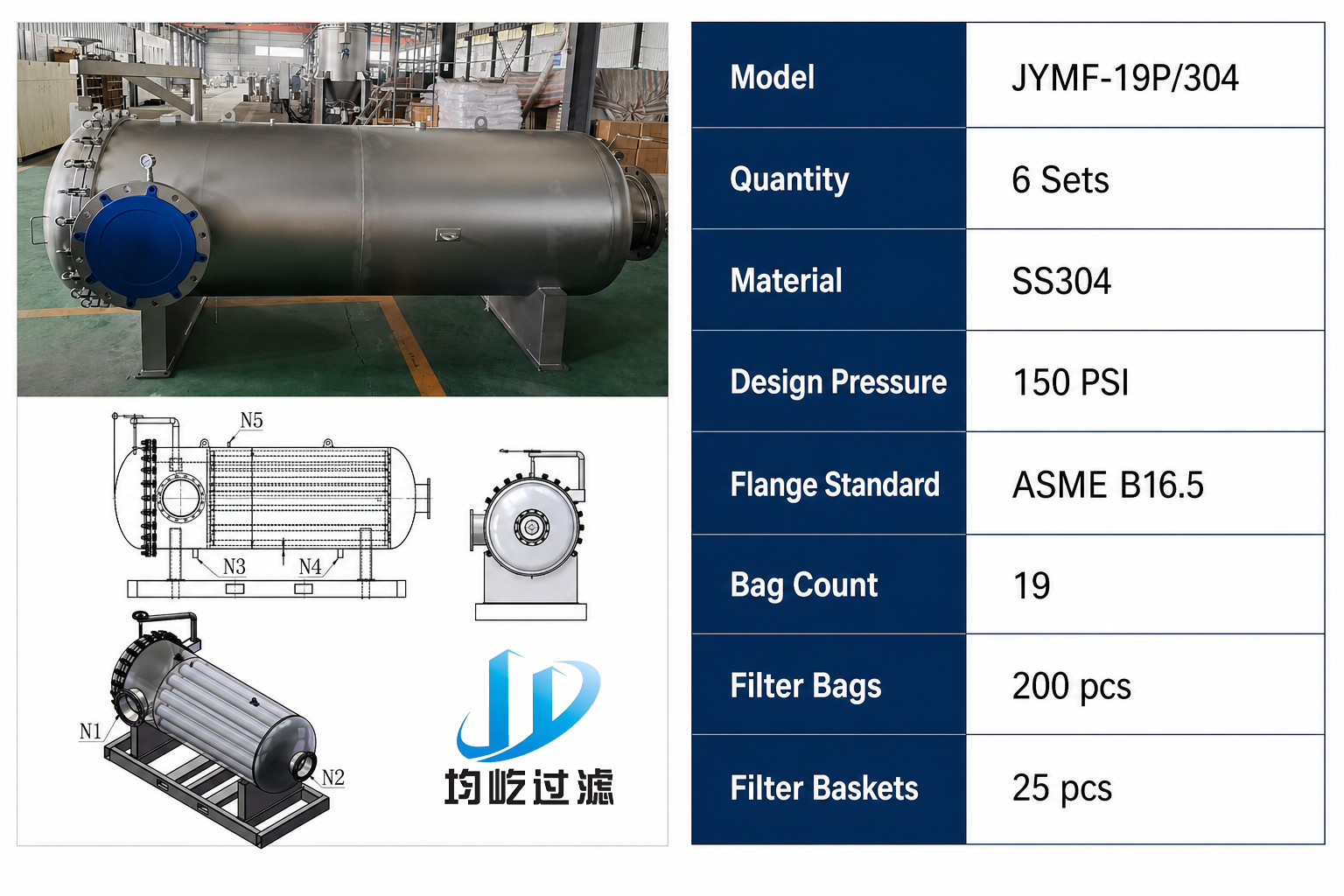

PARAMETER TABLE
