Custom Micron Multi Bag Filter Housing Stainless Steel for Food Beverage Clarification

I. Product Features

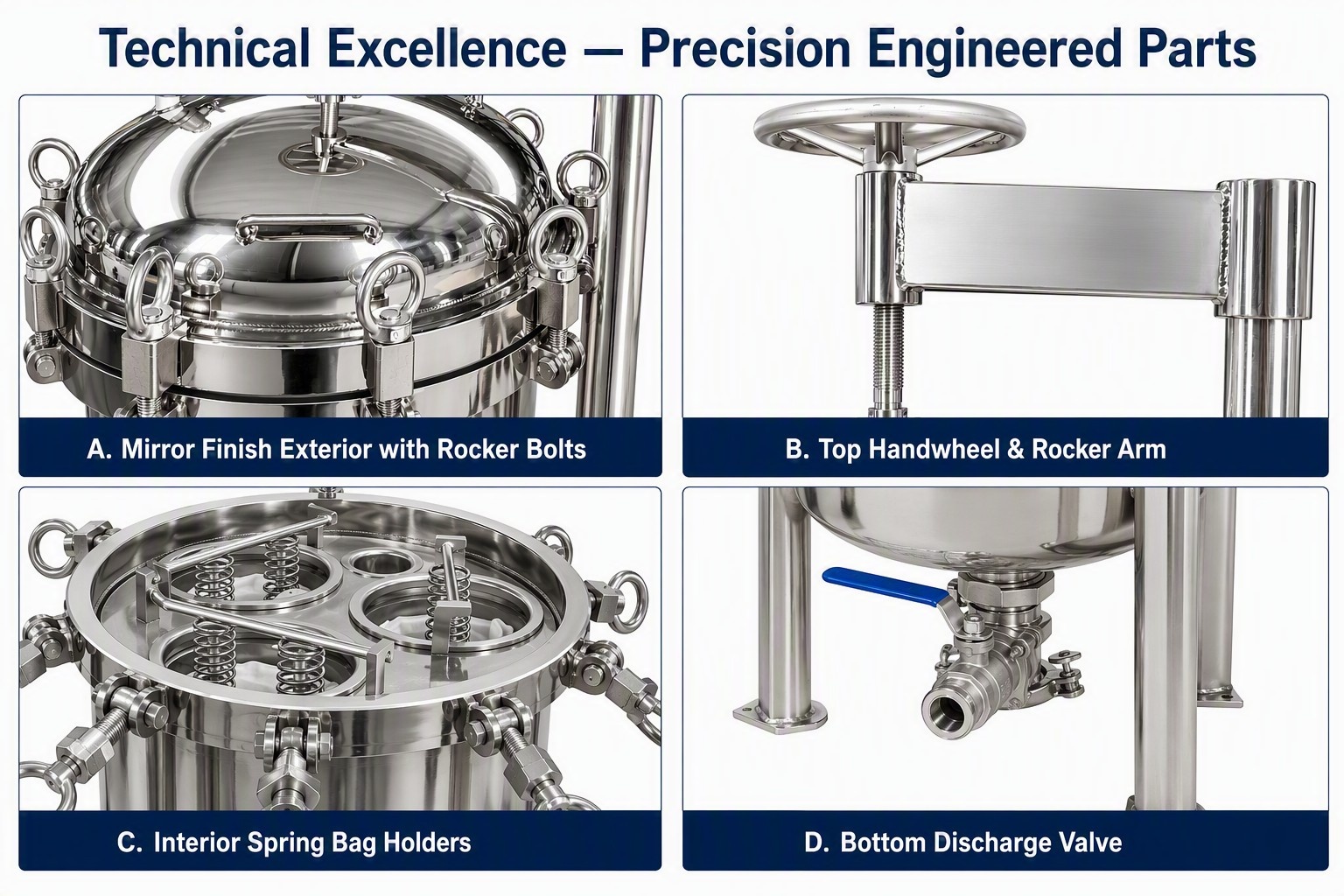

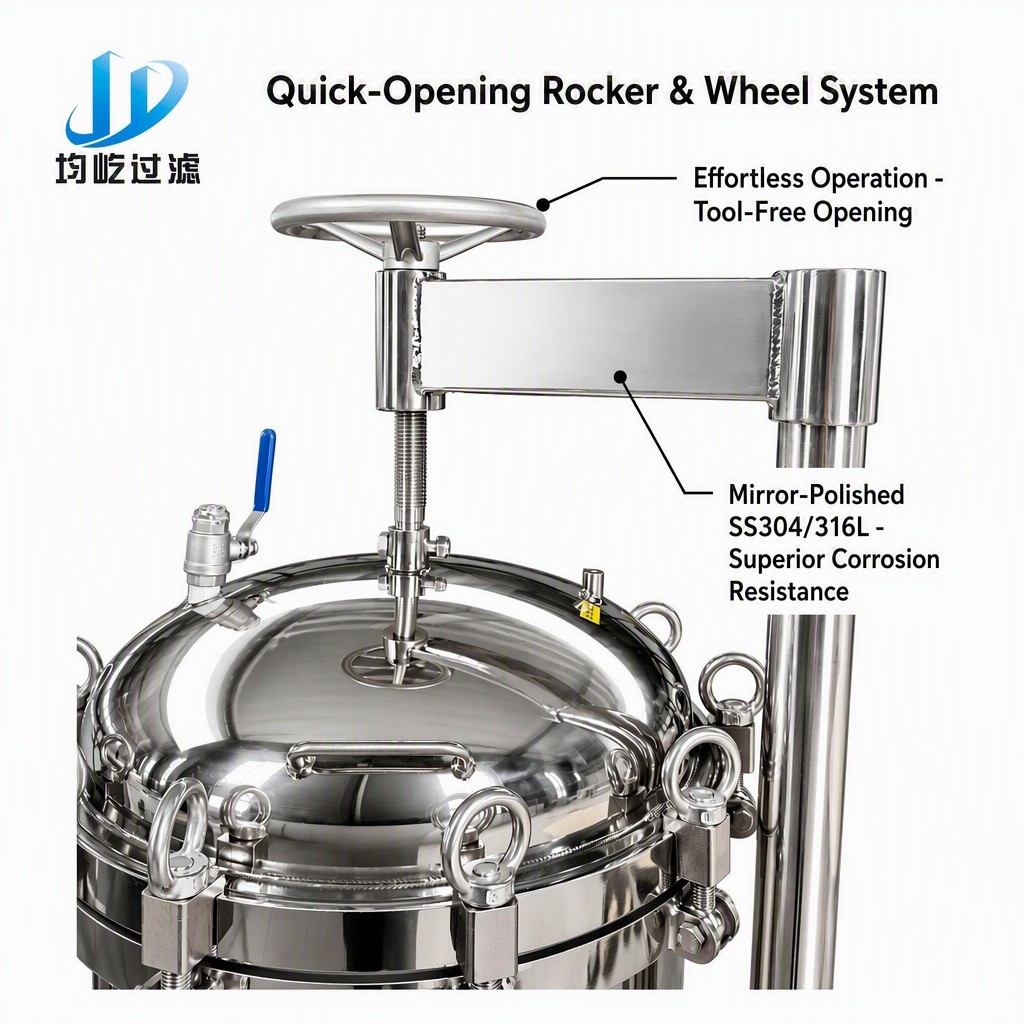

1. Quick-Opening Rocker & Wheel System: The top is equipped with a force-saving handwheel and a rocker-wheel linkage device. Without any special tools, the top cover can be quickly opened and locked, significantly reducing the downtime for filter bag replacement.

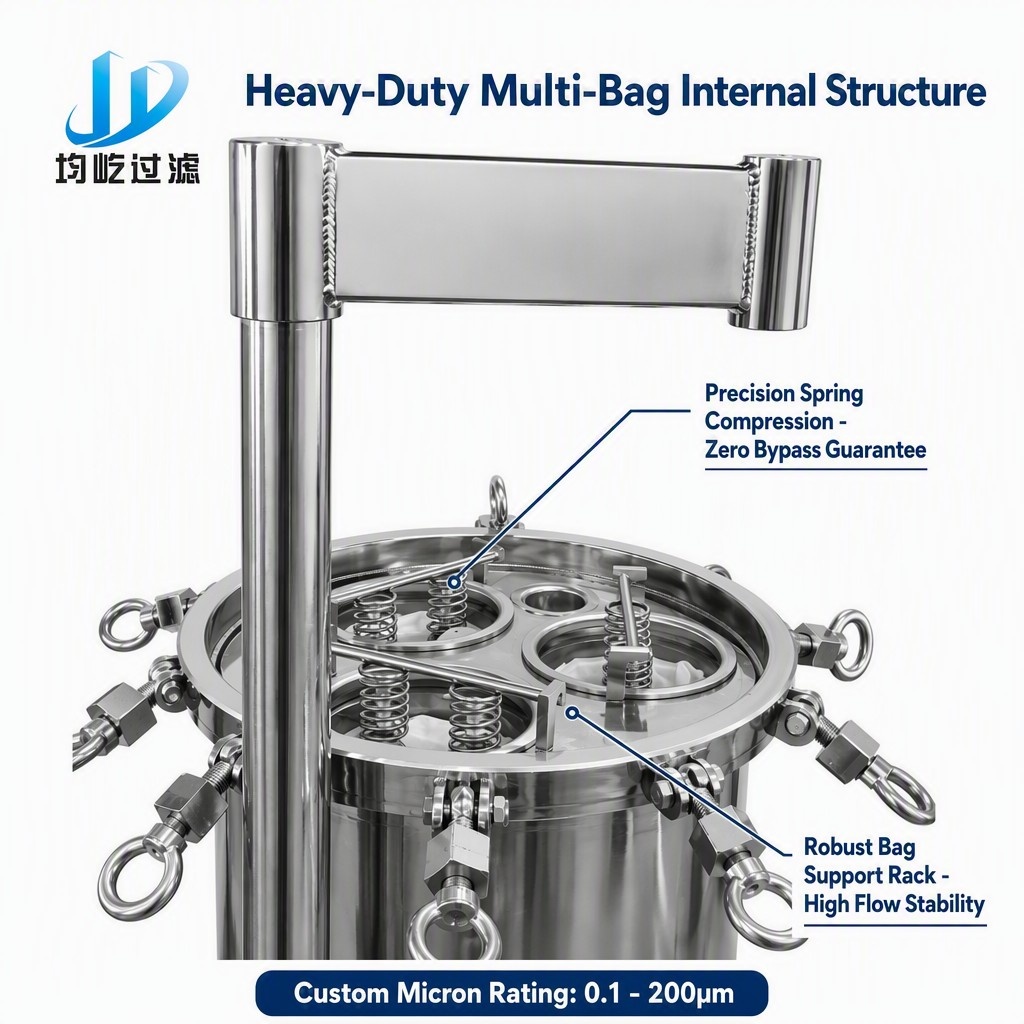

2. Heavy-Duty Multi-Bag Internal Structure: The internal structure uses a sturdy bag support frame, combined with a precise spring compression device, ensuring that the filter bags remain tightly adhered under high pressure and high flow, achieving zero bypass (Zero Bypass).

3. Mirror-Polished Finish: The inside and outside surfaces of the equipment are polished to a high gloss, not only providing excellent appearance quality but also having a smooth surface without any dead corners, effectively preventing fluid residue and scaling, and possessing excellent corrosion resistance.

4. High-Strength Structural Design: The cylinder body is made of thickened stainless steel plates, combined with the bottom flange and reinforced legs, with strong pressure-bearing capacity and stable operation; the standard flange interfaces for side-entry and bottom-out are convenient for pipeline connection.

5. Flexible Customization Precision: It supports customization of filtration accuracy from 0.1 microns to 200 microns according to specific process requirements, meeting the multi-level filtration needs from coarse to fine.

II. Product Advantages

1. High Efficiency and Low Consumption: The large filtration area design allows for extremely high flow rates to pass through while maintaining low pressure drop, significantly reducing operating energy consumption.

2. Low Maintenance Cost: The quick-opening design makes daily cleaning and filter bag replacement extremely simple, requiring only one person to operate, significantly reducing labor maintenance costs.

3. Safe and Reliable: The use of high-precision welding technology and multiple sealing designs ensures no leakage risk under high-pressure conditions, guaranteeing the continuous and safe operation of the production line.

4. Long Service Life: The SUS304/316L material and mirror-polished finish ensure an extremely long service life even in harsh industrial fluids such as strong acids, alkalis, and high salt concentrations.

III. Application Areas
This equipment is widely applicable in various industrial fluid treatment scenarios:

1. Chemical and Petrochemical: Clarification filtration of chemical solvents, acid and alkali solutions, catalysts, polymer melts, and various chemical intermediates.

2. Water Treatment and Environmental Protection: Pre-treatment of industrial wastewater, reclaimed water reuse, cooling circulating water side filtration, and pre-stage filtration of seawater desalination.

3. Coating and Ink: Removal of impurities and particle interception in paints, coatings, inks, resins, and adhesives.

4. Automotive and Machinery: Online circulation purification and regeneration of cutting fluids, lubricating oils, quenching oils, and hydraulic oils.

5. Electronics and Electroplating: Decontamination filtration and precious metal recovery of electroplating solutions, etching solutions, cleaning solutions.

IV. Product Selling Points
1. Toolless Quick Opening Design: The unique rocker-handwheel system opens in 3 seconds, solving the pain point of cumbersome opening of traditional filters, enabling rapid filter bag replacement.

2. Zero Bypass Pressure Tightening Technology: Through the internal spring and pressure plate structure, it effectively prevents short-circuiting caused by uneven pressure at the filter bag edges, resulting in higher filtration accuracy.

3. Industrial-grade Mirror-Polished Anti-Corrosion: The internal and external mirror-polished finish not only improves cleanliness but also demonstrates outstanding corrosion resistance in harsh chemical environments.

4. High Flow and Large Capacity: The multi-bag parallel structure allows a single unit to handle large flow rates of fluids, reducing equipment and pipeline connection costs.

5. Comprehensive Customization Services: Support for non-standard customization of filter bag materials, filtration accuracy, inlet and outlet directions, and flange standards based on the actual working conditions of the customer.
