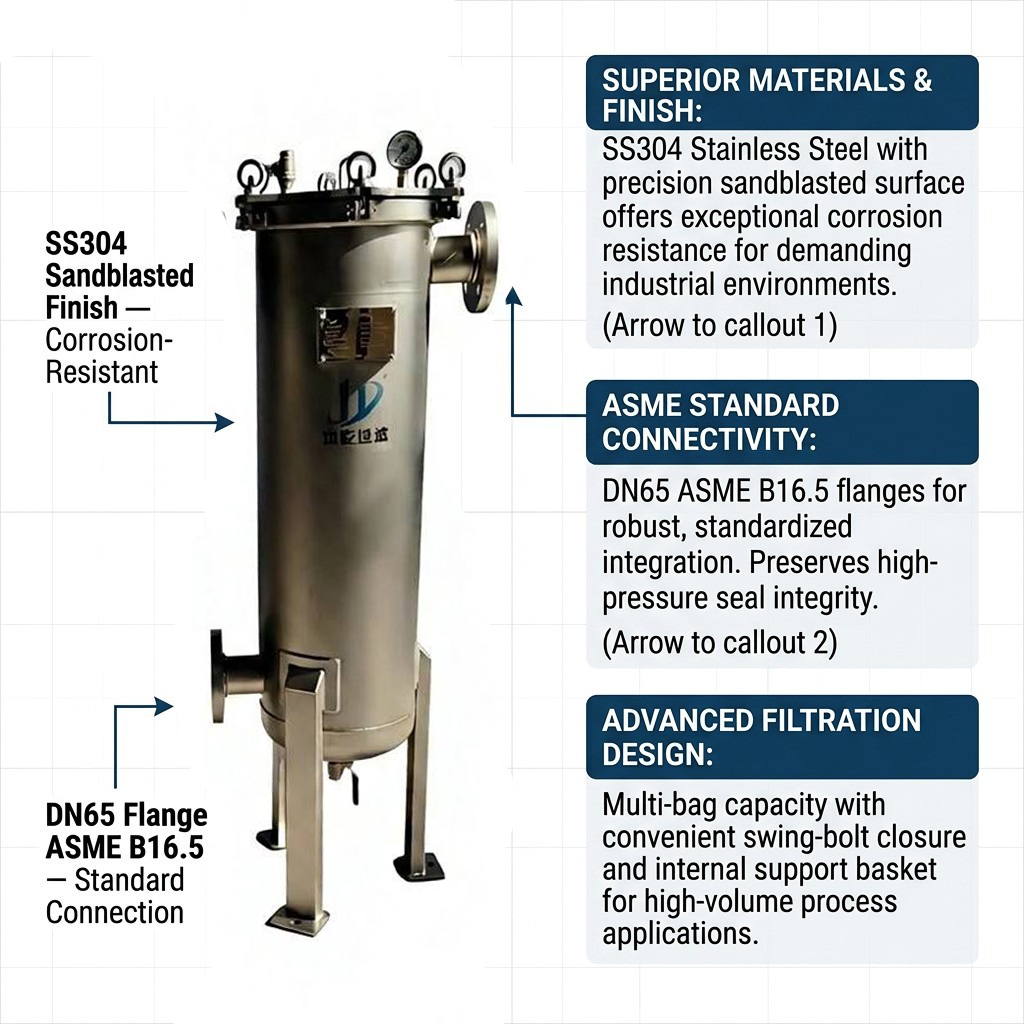

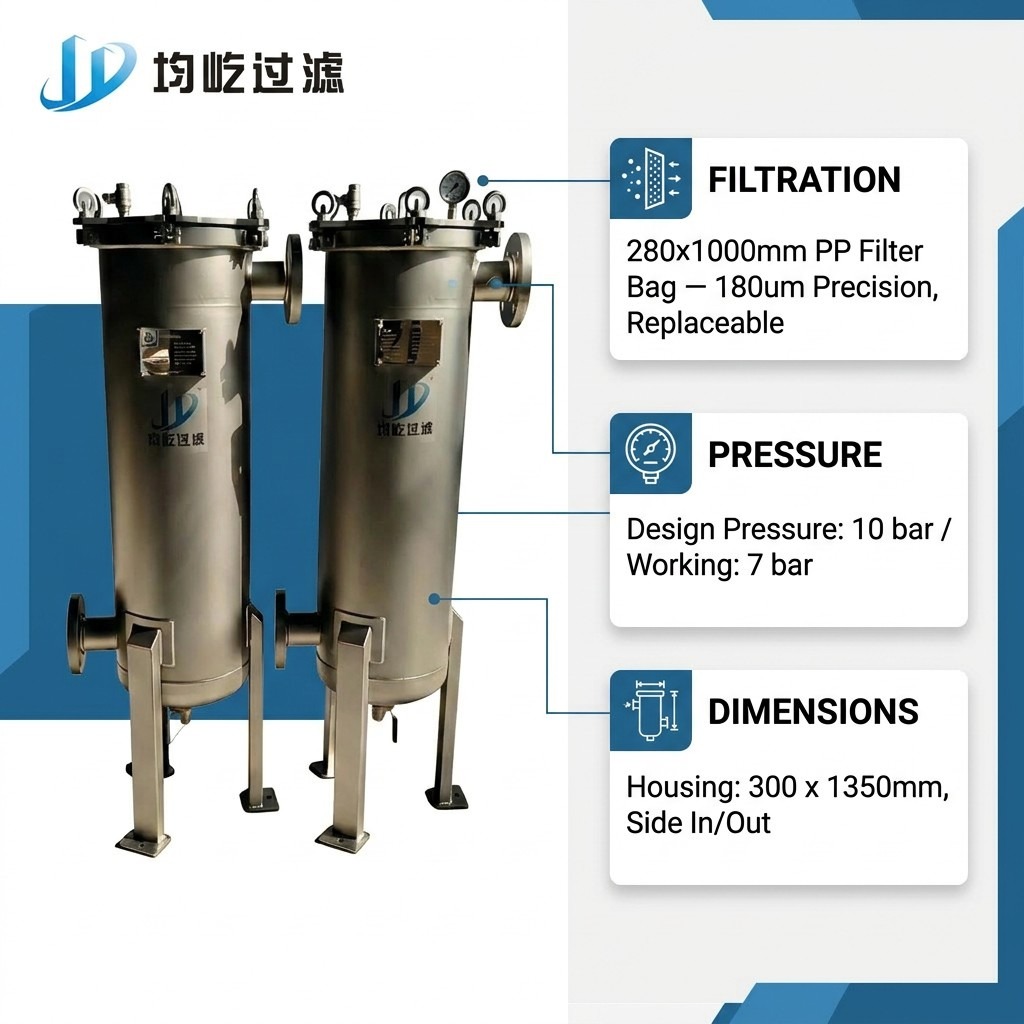

Factory Direct Stainless Steel Bag Filter 280x1000mm for Chemical Liquid Filtration

Product Features

1.Side-inside-out flow direction design: Low-resistance path, suitable for high-flow conditions, reducing pressure drop.

2. DN65 flange connection (ASME B16.5): Highly versatile, it can be quickly connected to standard piping systems.

3. Large-capacity filter bags (280×1000mm): Extend the single filtration cycle and reduce the frequency of bag replacement.

4. Sandblasting surface treatment: Improves appearance consistency and enhances the surface’s resistance to minor scratches and stains.

5. Wide pressure adaptability: With a 10bar design margin, it ensures stable operation for a long time at pressures below 7bar.

Product advantages

1. Reliable material: SS304 stainless steel is corrosion-resistant and resistant to oxidation, suitable for water-based, oil-based and various weak acid and alkali media.

2. Convenient maintenance: The top quick-opening design (standard configuration) allows for easy replacement of filter bags without the need for special tools.

3. Controllable filtration cost: Only the PP filter bags need to be replaced, and the filter body can be reused for a long time.

4. Excellent compatibility: Supports various types of filter bags (such as PP/PE/nylon, etc.), and can flexibly adjust the accuracy.

5. Stable structure: The cylinder body is thick and the welding process is standardized, making it suitable for continuous industrial production environments.

Application fields

1.Impurity interception during the production process of coatings and inks

2. Pre-filtration of industrial circulating water and cooling water

3. Filtration of Chemical Intermediate Products and Solvents

4. Coarse filtration of liquid raw materials and auxiliary materials for food and beverages

5. Metal processing fluid and cutting fluid recovery and filtration

6. Environmental protection water treatment and waste liquid pre-treatment
