Large Flow Capacity 304 Basket Strainer with Fine Mesh Screen

Large Flow Capacity 304 Basket Strainer with Fine Mesh Screen Featured Image
  • Large Flow Capacity 304 Basket Strainer with Fine Mesh Screen
  • Large Flow Capacity 304 Basket Strainer with Fine Mesh Screen
  • Large Flow Capacity 304 Basket Strainer with Fine Mesh Screen
  • Large Flow Capacity 304 Basket Strainer with Fine Mesh Screen
  • Large Flow Capacity 304 Basket Strainer with Fine Mesh Screen
  • Large Flow Capacity 304 Basket Strainer with Fine Mesh Screen

Brief Introduction:

The stainless steel basket-type filter is an efficient and durable pipeline filtration device, mainly composed of a cylinder body, filter basket, flange cover and fastening parts, etc. Its core filtering element is a porous filter basket shaped like a “basket”, which is made of high-quality 304 or 316L stainless steel. This device is installed in the pipeline system to filter out solid particle impurities in the fluid medium, protecting the safe operation of downstream valves, heat exchangers, nozzles and other key equipment.


Download as PDF

Product Detail

Product Features

1.Extremely large filtration area:
The unique basket-shaped structure design results in a filtration area much larger than the cross-sectional area of the pipeline of the same diameter. It can accommodate more impurities and reduce the frequency of cleaning.
2. Strong corrosion resistance:
The entire product is made of high-quality stainless steel, and the surface has been finely treated, enabling it to withstand the erosion of various acids, alkalis, salts and corrosive media.
3. Compact structure, small footprint:
The design is well-structured, the size is compact, and it is easy to install in pipeline layouts with limited space.

4. Simple maintenance:
The quick-opening flange cover design enables the filter basket to be easily removed for cleaning or replacement without the need to dismantle the pipeline, significantly reducing the maintenance time.
5. Wide applicability:
It offers various specifications of filter mesh pore diameters (common range: 50 – 8000 micrometers), meeting the filtration requirements of different working conditions.

Product advantages

1.Extremely low pressure drop, energy-saving and efficient:
Due to the large flow area, the pressure loss when the fluid passes through is extremely small. Compared with traditional Y-type filters, it is more energy-efficient and can effectively ensure the stability of system flow.
2. Durable and cost-effective:
The filter basket can be repeatedly cleaned and used without the need for consumable parts replacement. The overall structure is highly sturdy and can withstand high-pressure working conditions, with a long service life.
3. Reliable sealing performance:
Utilizing high-quality sealing gaskets, it ensures no leakage during operation and eliminates potential safety hazards.
4. Strong customization capability:
The connection methods for import and export (such as threads, flanges, clamps, etc.) and special filtration accuracy can be customized according to customer requirements, meeting the needs of different fluid systems.

Application fields
1


Petrochemicals: Used for filtering crude oil, gasoline, diesel, lubricating oil, and various chemical raw materials.


2


Food and Beverage: Suitable for impurity filtration in fluid production lines of drinking water, fruit juice, beer, dairy products, edible oil, etc.


3


Fine chemicals: Used for removing impurities in the production processes of coatings, inks, resins, adhesives, etc.


4


Water treatment: Used for industrial circulating water, cooling water, softened water, reverse osmosis pre-treatment, and wastewater reuse systems.


5


Mechanical manufacturing: Used for filtering and purifying electroplating solutions, cleaning agents, quenching oils, hydraulic oils, and lubricants.


6


Energy and power: Used for water replenishment in power plant boilers, as well as filtration protection for fuel oil and gas pipelines.

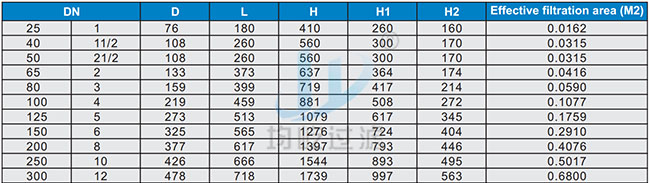

Parameter Table
 篮式参数表
