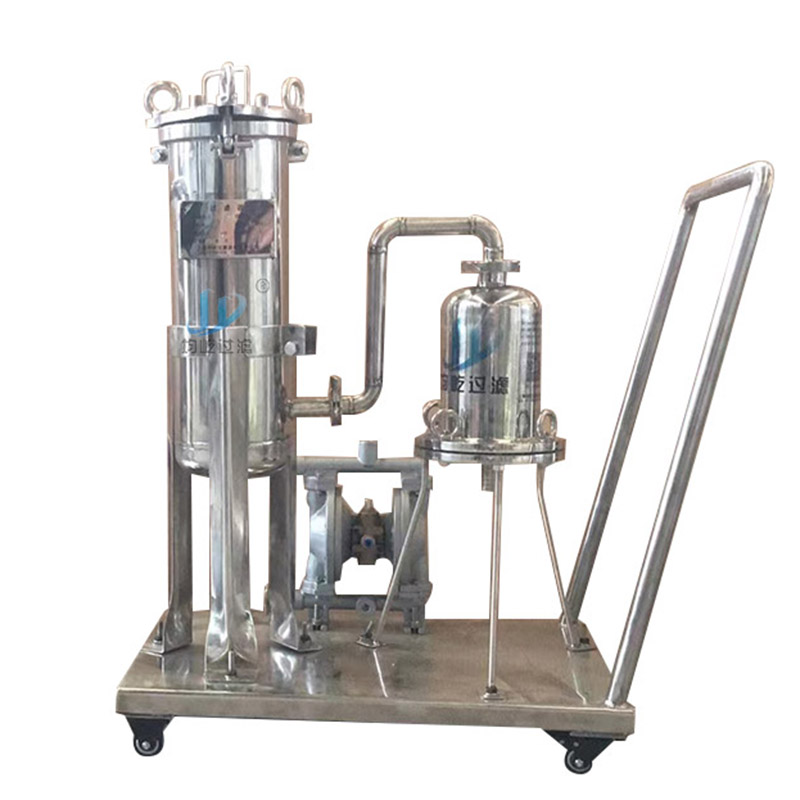

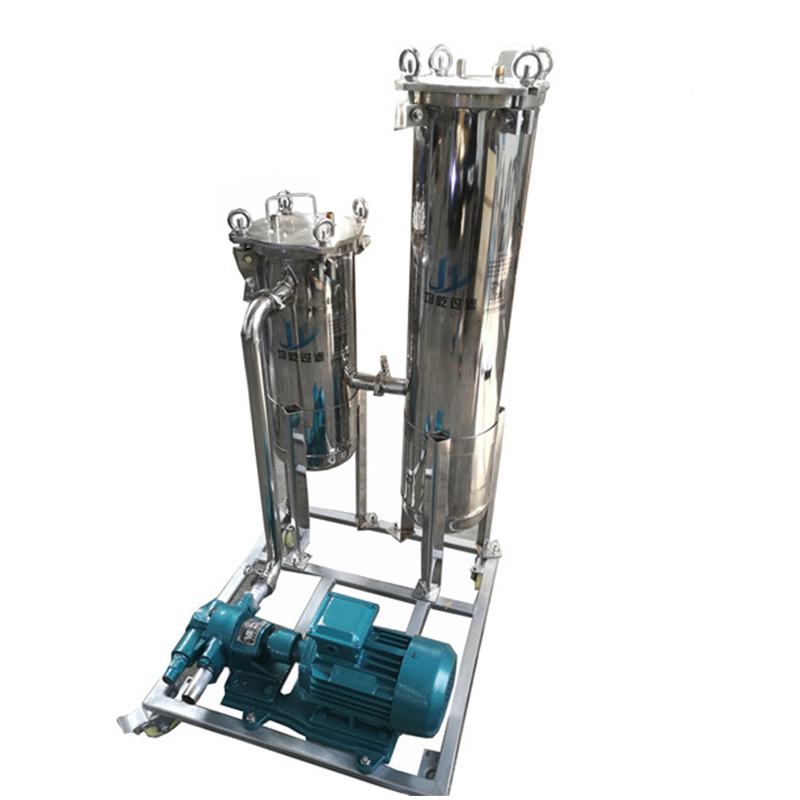

Bag filter system Multi-stage filtration
✧ Product Features
- Filtration precision: 0.5-600μm
- Material selection: SS304, SS316L, Carbon steel
- Inlet and outlet size: DN25/DN40/DN50 or as user's requrest, flange/threaded
- Design pressure: 0.6Mpa/1.0Mpa/1.6Mpa.
- Replacement of the filter bag is more convenient and quicker, the operating cost is lower.
- Filter bag material: PP, PE, PTFE, stainless steel.
- Large handling capacity, small footprint, large capacity.
- The filter bag can be connected with feeding pump, cartridge filter, magnetic filter, etc.
✧ Application Industries
Paint, beer, vegetable oil, pharmaceutical use, cosmetics, chemicals, petroleum products, textile chemicals, photographic chemicals, electroplating solutions, milk, mineral water, hot solvents, latex, industrial water, sugar water, resins, inks, industrial wastewater, fruit juices, edible oils, waxes, and so on.
✧ Bag Filter Ordering Instructions
1. Refer to the bag filter selection guide, bag filter overview, specifications and models, and select the model and supporting equipment according to the requirements.
2. According to the special needs of customers, our company can design and produce non-standard models or customized products.
3. The product pictures and parameters provided in this material are for reference only, subject to change without notice and actual ordering.
