Multi 6 Bag Filter Stainless Steel 316 Side In Bottom Out 10um Filter System 6bar

I. Product Features

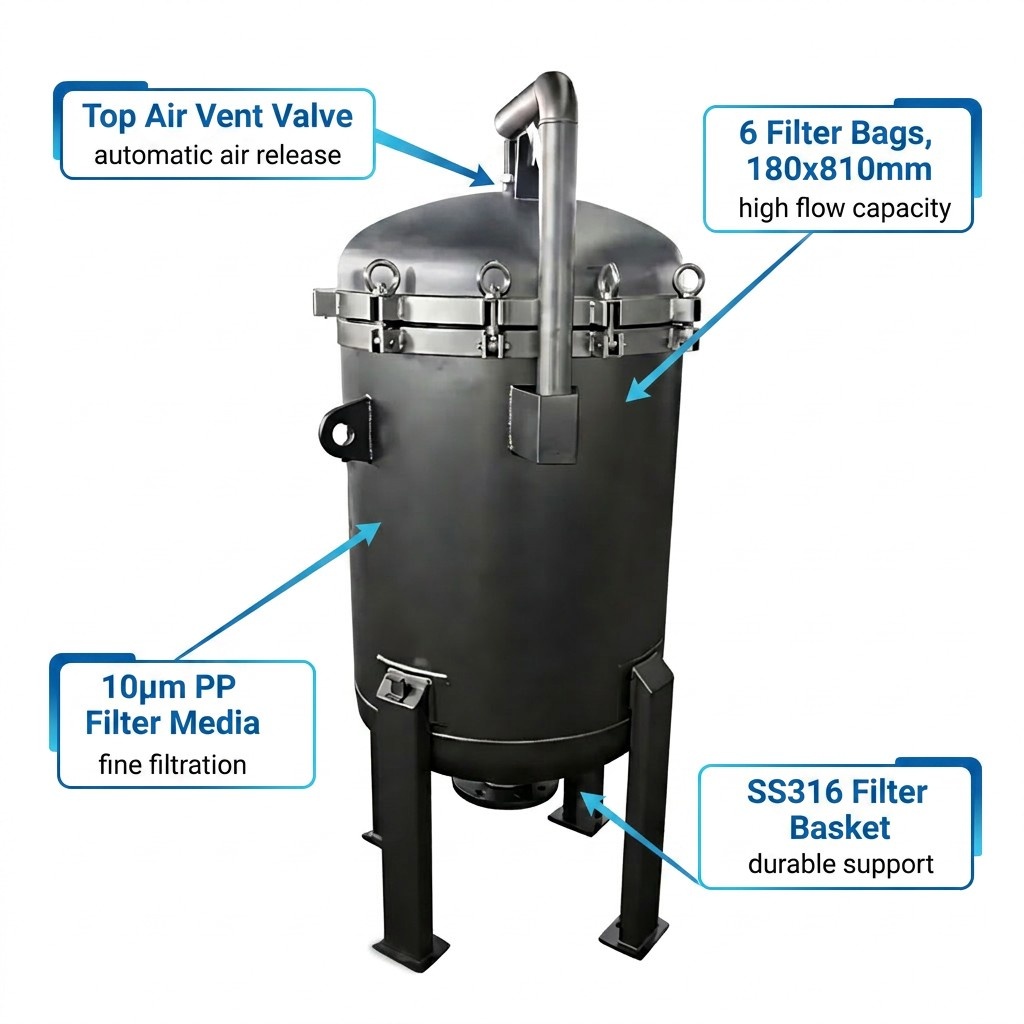

• High Flow Rate & High Throughput Design:Each unit accommodates six 2# filter bags, offering an effective filtration area far exceeding that of single-bag or smaller multi-bag models. It achieves high-flow filtration with minimal pressure drop, significantly reducing equipment footprint and initial investment costs.

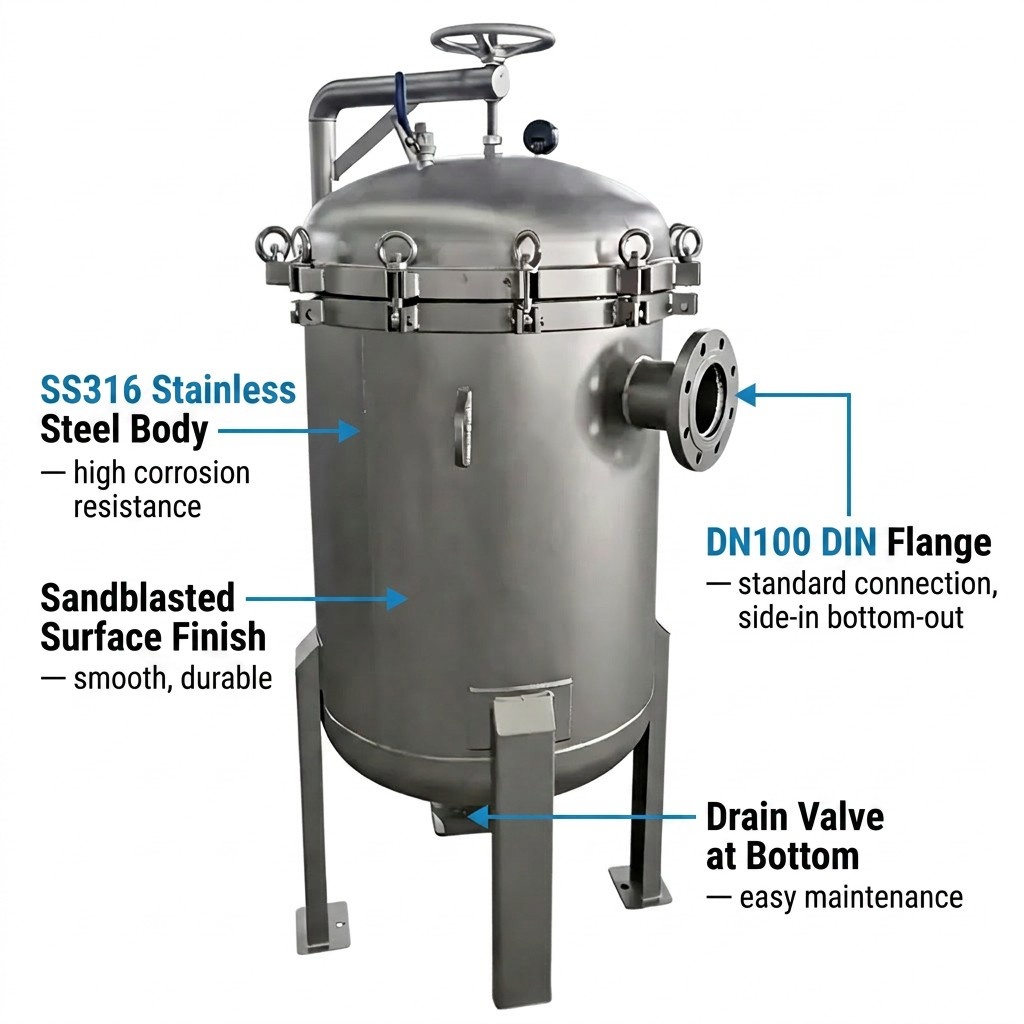

• Superior Corrosion-Resistant Material: The vessel and filter basket are both constructed from SS316 stainless steel. With a higher molybdenum (Mo) content than conventional 304 grade, it offers enhanced resistance to chloride ions, acid/alkaline solutions, and salt-spray environments, ensuring long-term stable operation.

• Precision Casting & Surface Finishing: The vessel features a bead-blasted matte finish, which not only improves the aesthetic appearance but also effectively relieves welding stress, enhances surface hardness, and facilitates easy cleaning and maintenance while reducing media residue.

• Flexible Operating Configurations: A top-mounted vent valve is standard, allowing rapid air purging during system start-up to avoid cavitation. A bottom drain valve is also provided for thorough residual liquid evacuation during shutdown, simplifying bag changes and vessel cleaning.

II. Product Advantages

• Superior Sealing Performance: Equipped with PTFE (Polytetrafluoroethylene) sealing components, which are chemically resistant to nearly all media and offer excellent thermal stability. This effectively eliminates bypass leakage, ensuring true and reliable filtration accuracy.

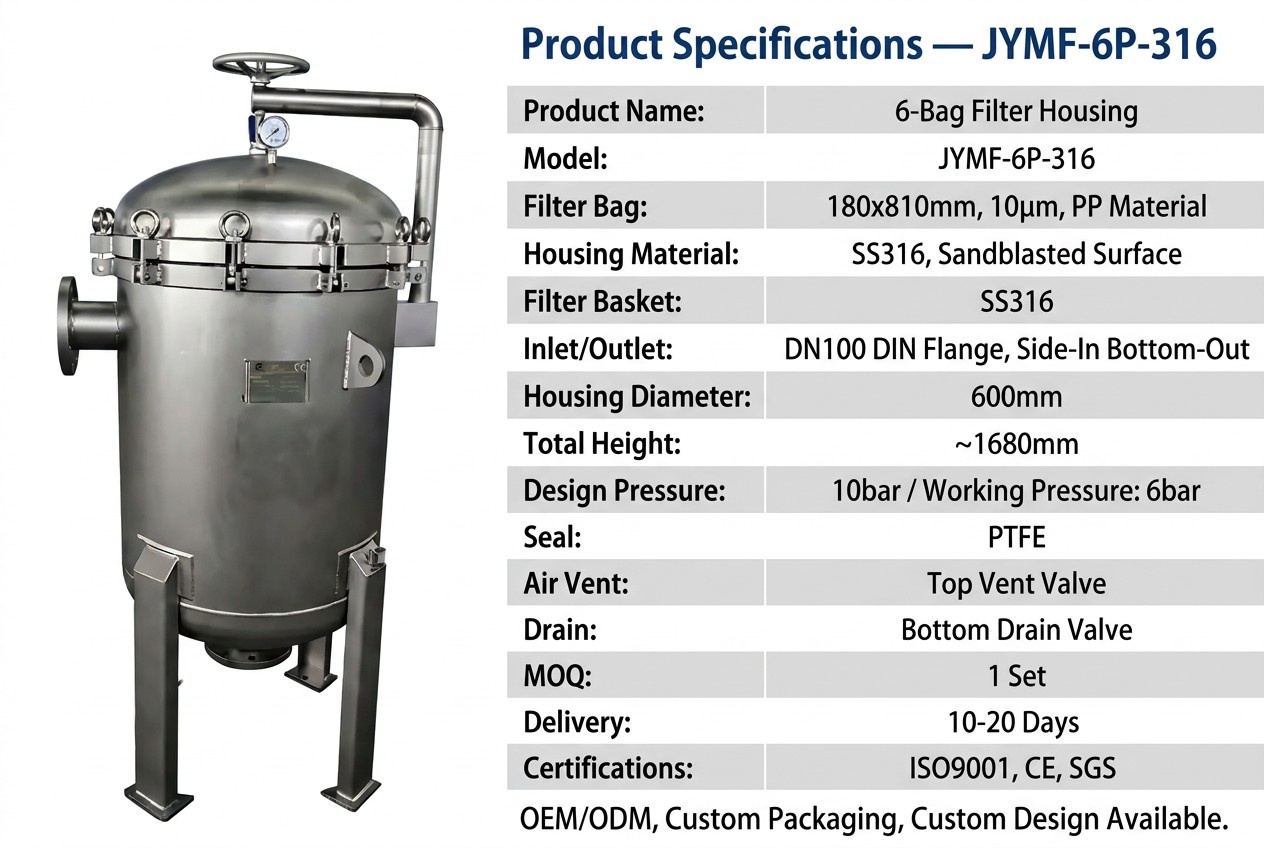

• Stable Pressure-Bearing Capacity: Designed for a maximum pressure of 10 bar and an operating pressure of up to 6 bar. Wall thickness and flange standards (DIN) are rigorously calculated to comfortably handle process pressure fluctuations, ensuring production line safety.

• Easy Installation & Maintenance: The side-in, bottom-out flow configuration (low-in, high-out, or horizontal-in, bottom-out) allows for bag changes without fully disassembling the piping, offering ample operating space and significantly reducing maintenance downtime.

• High-Precision Filtration Assurance: Supplied standard with 10-micron PP (Polypropylene) filter bags, delivering stable filtration efficiency to meet stringent clarity requirements in most processes. The filter bags are also cost-effective to replace, offering outstanding value for money.

III. Applications
Thanks to its strong corrosion resistance and high-flow handling capacity, this model is widely used in the following industrial sectors:

• Industrial Water Treatment: Cooling circulating water, rinse water, RO reverse osmosis pretreatment, and oilfield reinjection water filtration.

• Fine Chemicals: Filtration of paints, inks, resins, adhesives, polymer monomers, and chemical intermediates for impurity removal.

• Food & Beverage: Clarification filtration of fruit juices, tea drinks, syrups, edible oils, process water, etc. (must comply with food-grade standards).

• Metalworking & Surface Treatment: Circulating filtration of electroplating solutions, phosphating solutions, cutting fluids, cleaning agents, and other chemical baths.
