Stainless Steel Bag Filter Housing 2# 2 Bag 5 Micron DN65 Side In Bottom Out SS304

Product features

1.The main structure is made of SS304 stainless steel, and all parts except the filter bag are made of stainless steel, which has excellent corrosion resistance.

2.The surface has been polished, giving the overall appearance a smooth and clean look, making it easy to clean and maintain.

3.The working pressure is designed at 1.6 MPa, which can meet the requirements of conventional industrial fluid filtration.

4.The inlet and outlet use DN65 specifications, with a side-in and bottom-out structure, facilitating the layout of pipelines and on-site installation.

5.It is equipped with 2# filter bags, with a filtration accuracy of 5 microns, and a plastic mouth design, making replacement convenient.

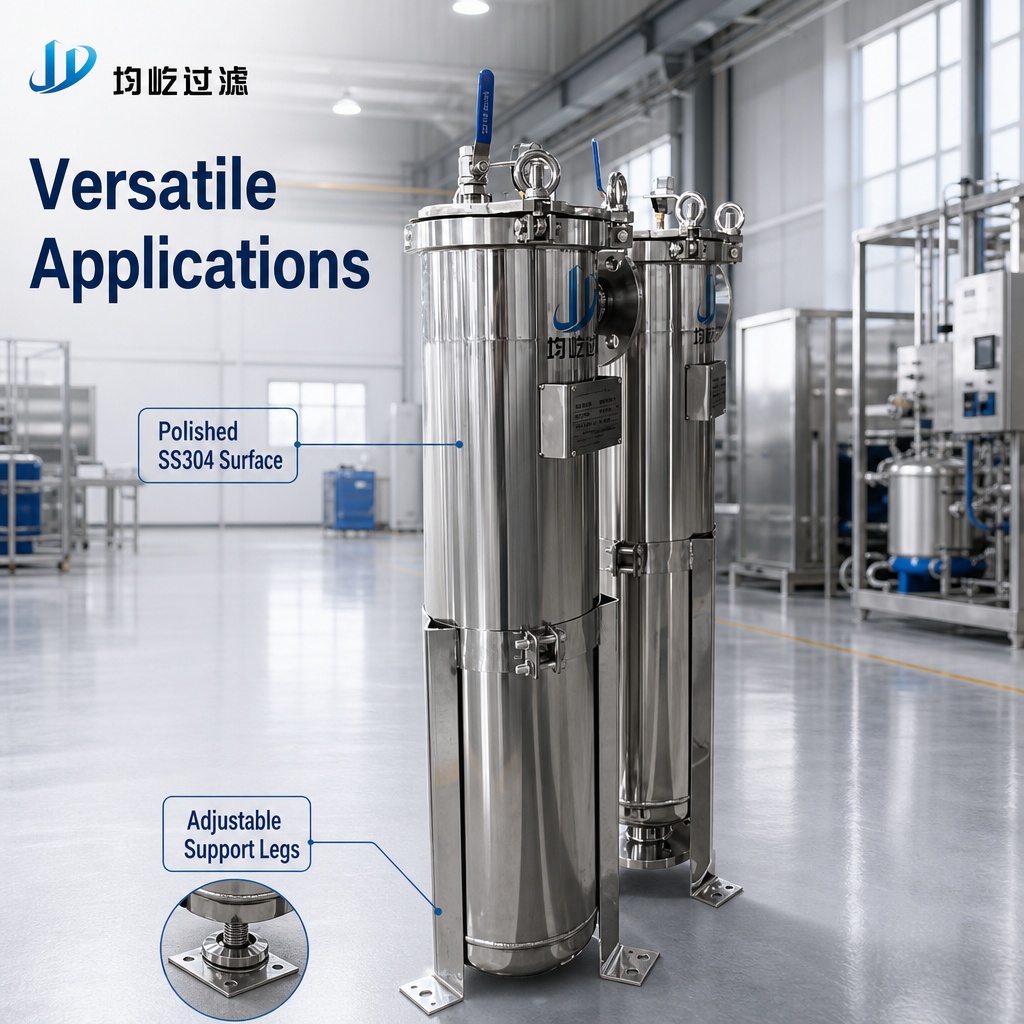

6.The bottom is equipped with adjustable legs, which can be flexibly adjusted to the height and levelness of the site according to the ground conditions.

Product advantages

1.Reliable material: The main pressure-bearing components are made of SS304 stainless steel, which has good strength and corrosion resistance, and is suitable for various industrial fluid environments.

2.Stable filtration accuracy: The 5-micron filtration accuracy can effectively intercept fine particle impurities, ensuring the operation of subsequent processes or equipment.

3.Flexible installation: The side-in and bottom-out structure and adjustable legs design reduce the difficulty of on-site installation and adapt to different site conditions.

4.Easy maintenance: The bag-type structure makes it simple to replace the filter bags, reducing downtime and facilitating daily maintenance.

5.Clean appearance: The polished treatment makes the surface of the equipment smooth, less prone to dust and dirt accumulation, and easy to clean.

Application fields

This product is suitable for industrial applications where solid-liquid separation and particle impurity filtration of liquids are required. It can be used in water treatment, chemical liquid filtration, coating and ink filtration, liquid filtration in the food and beverage industry, electroplating and surface treatment liquid filtration, and industrial circulating water filtration, etc. The specific applicability needs to be confirmed based on the actual fluid properties, temperature, pressure, and filtration accuracy requirements.

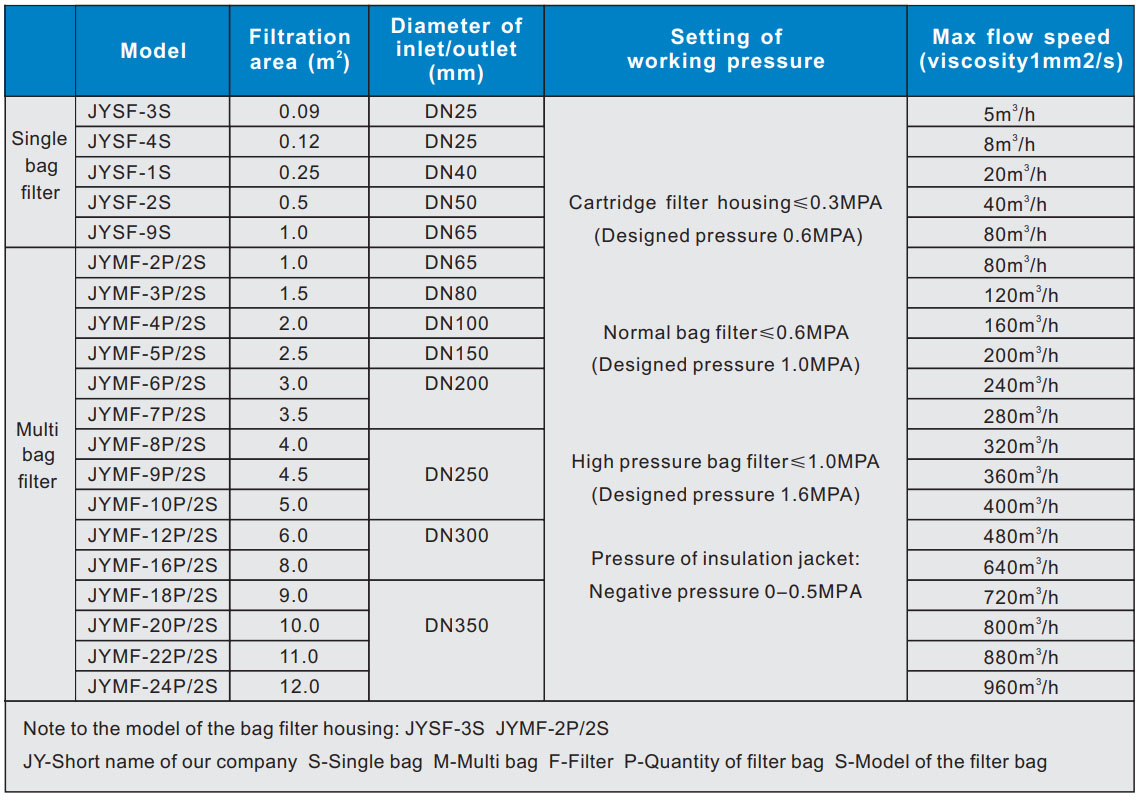

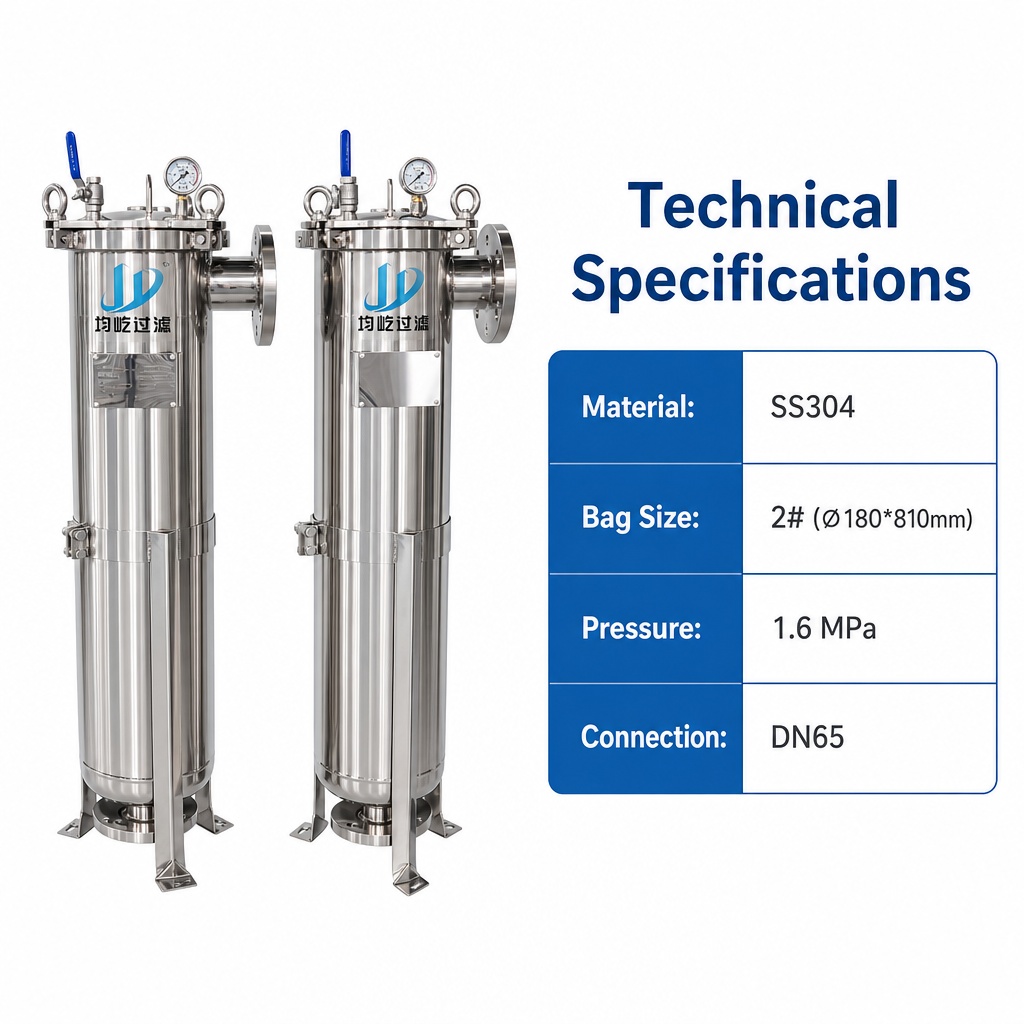

Parameter Table
