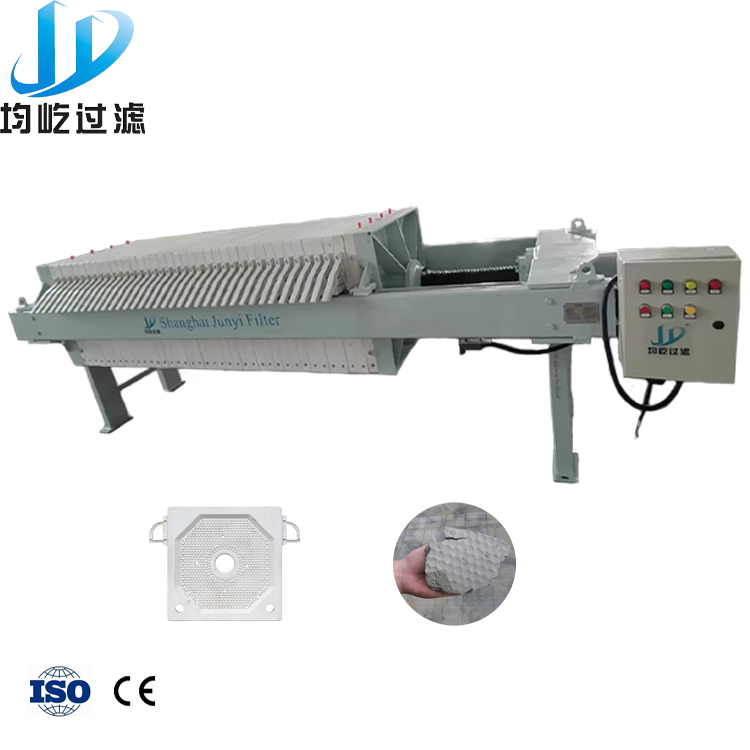

XMY30/630-30 Solid Liquid Separation Filter Press Hydraulic Pressure

XMY30/630-30 Solid Liquid Separation Filter Press Hydraulic Pressure Featured Image
  • XMY30/630-30 Solid Liquid Separation Filter Press Hydraulic Pressure
  • XMY30/630-30 Solid Liquid Separation Filter Press Hydraulic Pressure
  • XMY30/630-30 Solid Liquid Separation Filter Press Hydraulic Pressure
  • XMY30/630-30 Solid Liquid Separation Filter Press Hydraulic Pressure
  • XMY30/630-30 Solid Liquid Separation Filter Press Hydraulic Pressure
  • XMY30/630-30 Solid Liquid Separation Filter Press Hydraulic Pressure

Brief Introduction:

The XMY30/630-30 automatic hydraulic box-type filter press is a compact and easy-to-operate equipment for solid-liquid separation.The entire machine adopts the 700 type box-type frame and is equipped with an automatic hydraulic pressing system and a manual pull plate mechanism, which is suitable for the filtration treatment of small and medium-sized batches of materials.

Download as PDF

Product Detail

Product Features



1






1.Automatic hydraulic clamping:
The hydraulic system automatically completes the clamping and releasing of the filter plates, reducing the manual operation intensity.
2.Manual plate pulling design:
The plate pulling process is controlled manually, with a simple structure and convenient maintenance.
3.Double-flow structure:
The filtrate is discharged from both sides of each filter plate in a clear flow, facilitating on-site observation and sampling.
4.700 type box filter plate:
The middle filter plate measures 700×700×55mm. It is made of PP material and comes with a handle and a plastic water spout.
5.Carbon steel frame:
Entirely coated with off-white anti-rust paint, sturdy and durable.

Product advantages





1.Adaptable:
Suitable for various solid-liquid separation scenarios in room temperature environments.
2.Easy operation and maintenance:
The manual pull plate and open-flow structure reduce the complexity of automation, facilitating maintenance and replacement of the filter cloth.
3.Configuration complete:
Each device is equipped with 38 pieces of 750AB type filter cloth. Installation and use can be carried out directly after unpacking.

Design drawing



Filtering effect
Application fields
1


Material filtration and washing in the chemical industry


2


Sludge Dewatering in Environmental Protection Engineering


3


Solid-liquid separation in food processing (such as plant extraction and oil refining)


4


Tailings treatment and wastewater purification in the mining and metallurgical industries


5


Dewatering of slurries in the production of ceramics, dyes, pigments, etc.








Company Profile
 1
2
3
FAQ

Q: Are you manufacturer?
A: Yes. We are experienced manufacturer of filter equipment.
Q:What products you provide?
A: We produce more than 200 different models of the filter. The main products are the Press Filter/Bag Filter Housing/Automatic self cleaning filter/Basket filter/Magnetic filter/ Candle filter/Leaf filter/Cartridge filter housing/Filter Plate/Filter Cloth/Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc.
Q: How to select the type you needed?
A: We will ask you some information: solid liquid kind, usage, flow rate, solid content
percentage, working temperature & pressure, etc. We have professional technical team which will work together with our sales to help you choose the suitable machine for you.
Q. Is it easy to operate for the new user ?
R. A: Yes. We offer you manual book and operating video. When you have any questions during using, we will answer you within 24 hours. For large projects, we can also send our engineers to your site for commissioning and training.
Q: What’s MOQ?
A: 1 PCS.
Q: Do you accept OEM?
A: Yes.
Q:Quality Warranty.
A:12 months after the installation and commission or 18 months after it has been delivered to the site of the customer.
