1000L Jacketed Stainless Steel Homogenizing Tank for Chemical Liquid Processing
Product Features
-
Multi-Layer Tank Structure
Engineered with a three-layer design:-
Inner layer: 1000×1200 mm, thickness 4 mm
-
Concave jacket layer: 1100×1200 mm, thickness 3 mm
-
Insulation layer: 1200×1200 mm, thickness 1.5 mm
This configuration significantly improves thermal insulation and heat exchange efficiency.
-
-

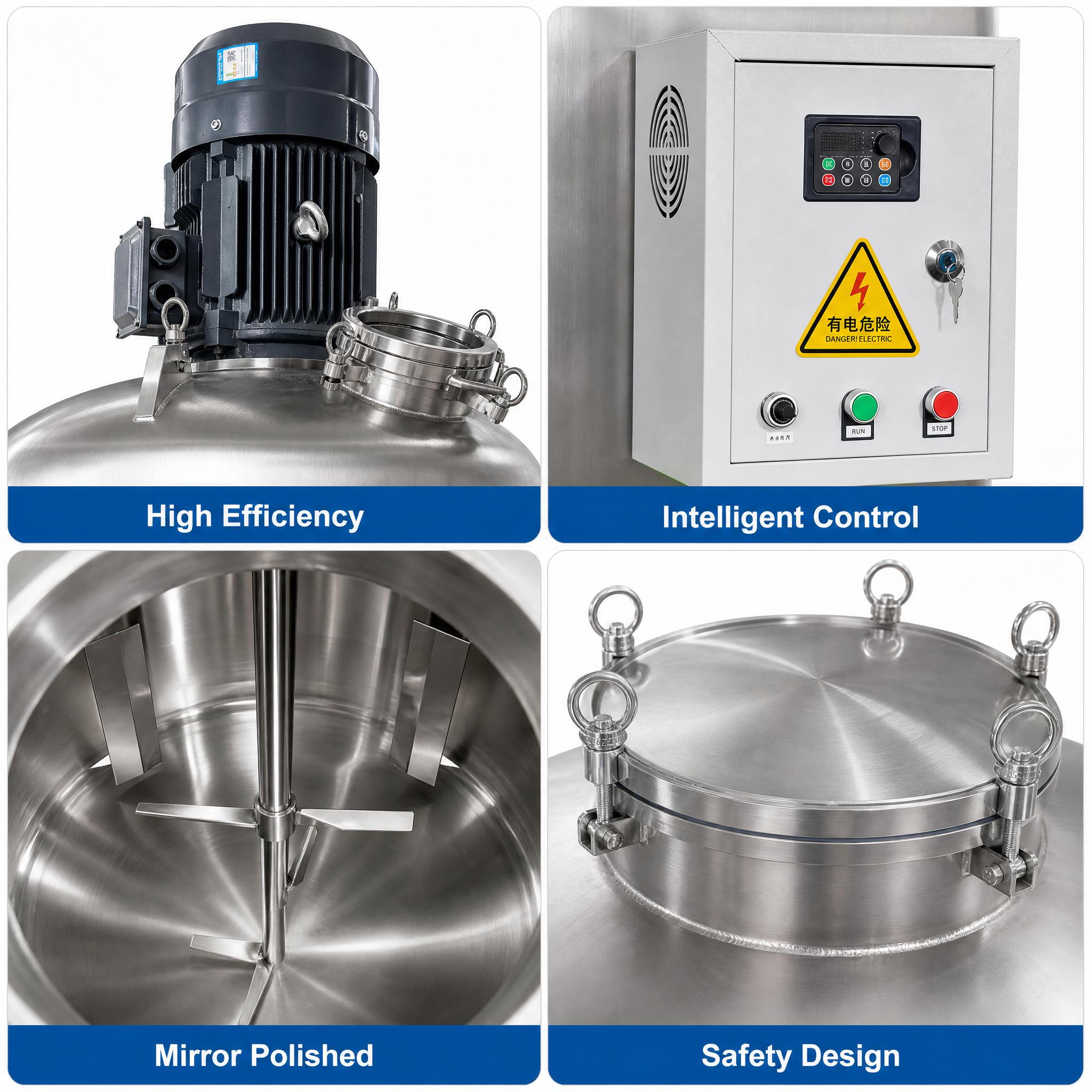

High-Performance Top Homogenization System
Powered by an 11 kW motor with a maximum speed of 2900 RPM. Equipped with variable speed control, it allows flexible adjustment of shear intensity based on material properties, enabling rapid emulsification, dispersion, and refinement. -
High-Power Electric Heating
Total heating capacity of 72 kW, supplied by four independent 16 kW heating elements. Ensures rapid temperature rise and precise attainment of process requirements. -
Safe Pressure Relief Protection
Fitted with an enclosed rainproof safety valve, pre-set to release at 0.2 MPa, guaranteeing operational safety under all conditions. -
Superior Surface Finish
-
Inner surface: Mirror-polished to minimize material adhesion and simplify cleaning.
-
Outer surface: 2B matte finish for enhanced corrosion resistance, aesthetic appeal, and long-term durability.
-
-
Convenient Feeding and Maintenance Access
Equipped with a DN400 manhole cover on the top, facilitating raw material loading, process observation, and internal upkeep.
Product Advantages
-
Material Reliability
Constructed entirely from SS304 stainless steel, offering outstanding corrosion resistance and suitability for a wide range of acidic, alkaline, or neutral fluids. -
Integrated Heating and Homogenization
Eliminates intermediate material transfer steps, shortens production cycles, and minimizes the risk of cross-contamination. -
Flexible Process Control
Independent speed and temperature regulation allow custom parameter settings to accommodate varying viscosities and densities, ensuring optimal results for diverse formulations.
Application Fields
-
Fine Chemicals – Mixing and dispersion of coatings, paints, inks, and similar products.
-
Food Industry – Homogenization of flavoring sauces, syrups, and dairy pre-mixes.
-
Daily Chemicals – Emulsification and blending of shampoos, body washes, liquid soaps, and other personal care items.
-
Industrial Additives – Preparation of liquid-liquid or solid-liquid suspensions, including surfactants and other specialty additives.
