Manual Small Closed Filter Press for Precious Metal Refining

Manual Small Closed Filter Press for Precious Metal Refining Featured Image
  • Manual Small Closed Filter Press for Precious Metal Refining
  • Manual Small Closed Filter Press for Precious Metal Refining
  • Manual Small Closed Filter Press for Precious Metal Refining
  • Manual Small Closed Filter Press for Precious Metal Refining
  • Manual Small Closed Filter Press for Precious Metal Refining
  • Manual Small Closed Filter Press for Precious Metal Refining

Brief Introduction:

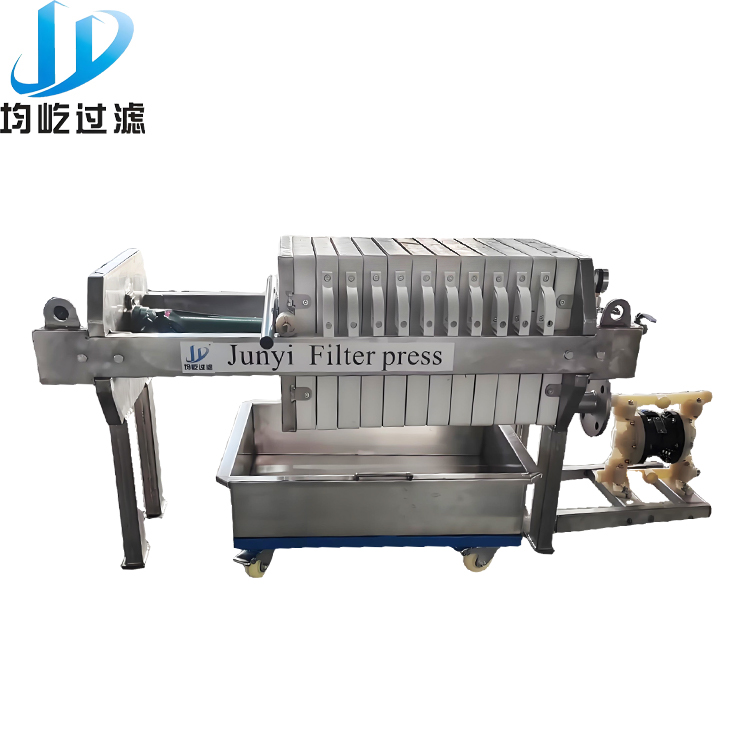

This product is a manual jack-type sealed filter press, model XAQ2-320/30, specifically designed for filtration scenarios involving small batches and highly corrosive materials, such as precious metal refining and chemical sludge treatment. The equipment features a 316L stainless steel frame, offering excellent corrosion resistance and making it suitable for solid-liquid separation of acidic or neutral solutions.

Download as PDF

Product Detail

Product Features





1

1.Sealed chamber structure:
Prevents material splashing, ensuring a safer and cleaner operating environment.
2.Manual jack compression:
No power supply required, suitable for small-batch, intermittent production. Simple and reliable operation.
3.Closed discharge design:
Prevents material from contacting the external environment, reducing volatilization and contamination.
4.High-quality filter plates:
PP filter plates combined with fluorine rubber seals, resistant to acid and alkali corrosion.
5.High-precision filtration:
Filtration accuracy up to 5–10 microns, meeting fine separation requirements.

Product advantages
 3
1.Strong corrosion resistance:
Capable of handling highly acidic solutions, suitable for highly corrosive working conditions.
2.Compact and efficient:
Filtration area of 2m² with a compact structure; highly efficient for processing 5–15 kg of sludge per batch.
3.Easy maintenance:
The filter cloth adopts the standard 380×380 mm size; parts are highly interchangeable and easy to replace.
4.Strong customization capability:
Optional configurations such as blind plates, collection trays, and pneumatic diaphragm pumps are available based on customer requirements to suit different process flows.

Application fields
1


Chemical sludge treatment (containing acidic or neutral solutions) in metal refining processes


2


Solid-liquid separation in the precious metal recycling industry


3


Small-batch filtration of corrosive materials at laboratory or pilot scale


4


Small-scale filter press dewatering processes in chemical, metallurgical, environmental protection, and other industries


Parameter Table

Company Profile
公司介绍1
2
3
FAQ

Q: Are you manufacturer?
A: Yes. We are experienced manufacturer of filter equipment.
Q:What products you provide?
A: We produce more than 200 different models of the filter. The main products are the Press Filter/Bag Filter Housing/Automatic self cleaning filter/Basket filter/Magnetic filter/ Candle filter/Leaf filter/Cartridge filter housing/Filter Plate/Filter Cloth/Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc.
Q: How to select the type you needed?
A: We will ask you some information: solid liquid kind, usage, flow rate, solid content
percentage, working temperature & pressure, etc. We have professional technical team which will work together with our sales to help you choose the suitable machine for you.
Q. Is it easy to operate for the new user ?
R. A: Yes. We offer you manual book and operating video. When you have any questions during using, we will answer you within 24 hours. For large projects, we can also send our engineers to your site for commissioning and training.
Q: What’s MOQ?
A: 1 PCS.
Q: Do you accept OEM?
A: Yes.
Q:Quality Warranty.
A:12 months after the installation and commission or 18 months after it has been delivered to the site of the customer.
