XMY20 700 PP Chamber Filter Press Auto Hydraulic Acid Slurry

XMY20 700 PP Chamber Filter Press Auto Hydraulic Acid Slurry Featured Image
  • XMY20 700 PP Chamber Filter Press Auto Hydraulic Acid Slurry
  • XMY20 700 PP Chamber Filter Press Auto Hydraulic Acid Slurry
  • XMY20 700 PP Chamber Filter Press Auto Hydraulic Acid Slurry
  • XMY20 700 PP Chamber Filter Press Auto Hydraulic Acid Slurry
  • XMY20 700 PP Chamber Filter Press Auto Hydraulic Acid Slurry
  • XMY20 700 PP Chamber Filter Press Auto Hydraulic Acid Slurry

Brief Introduction:

This product is a box-type filter press, model XMY20/700. It features a carbon steel frame and an automatic hydraulic pressing system, equipped with PP box-type filter plates. It is suitable for solid-liquid separation operations under normal temperature and pressure conditions. The equipment supports manual discharge and dual parallel liquid discharge. The feeding method is controlled feeding. The overall structure is compact and the operation and maintenance are convenient.

Download as PDF

Product Detail

Product features

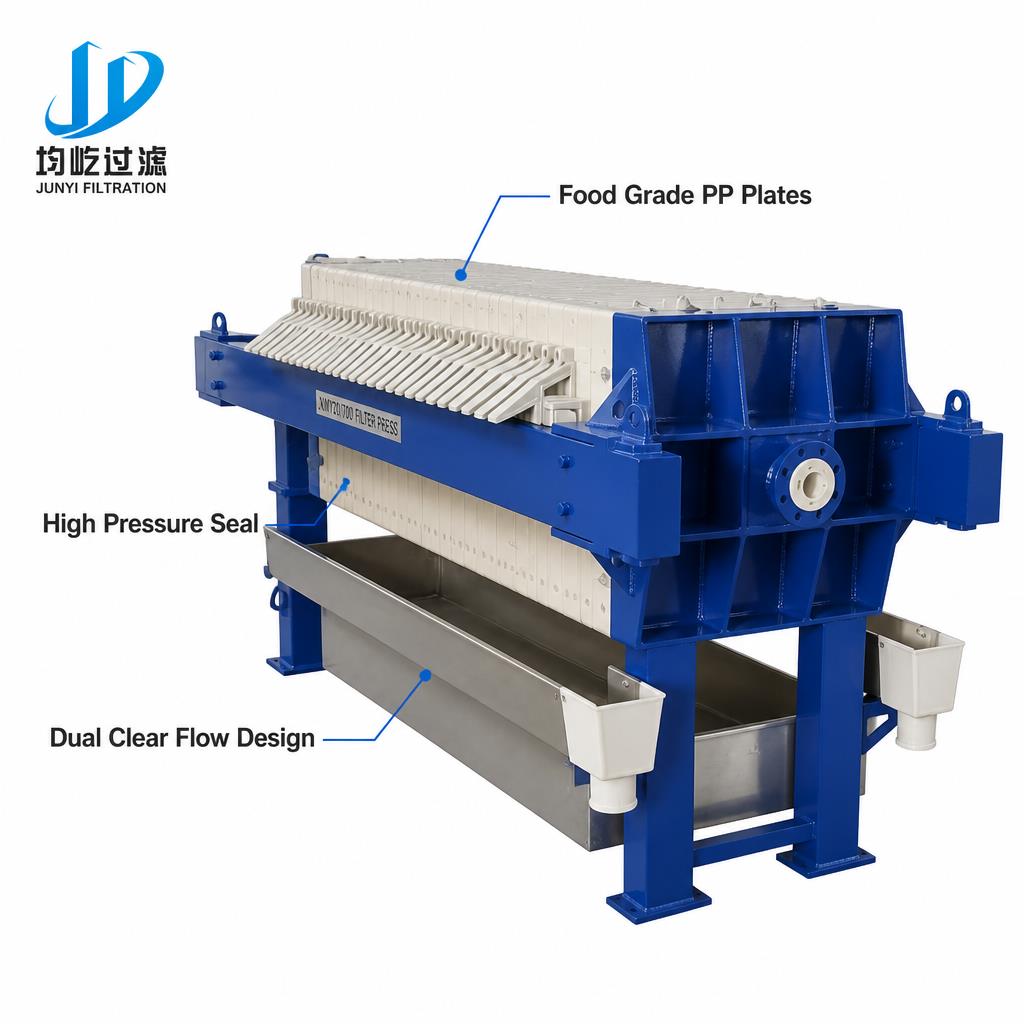

  • 1 The PP box-type filter plates with dimensions of 700×700mm are used, with 24 plates per unit, and 2 spare plates are provided. The filtration area is stable and the filter cake is formed uniformly.

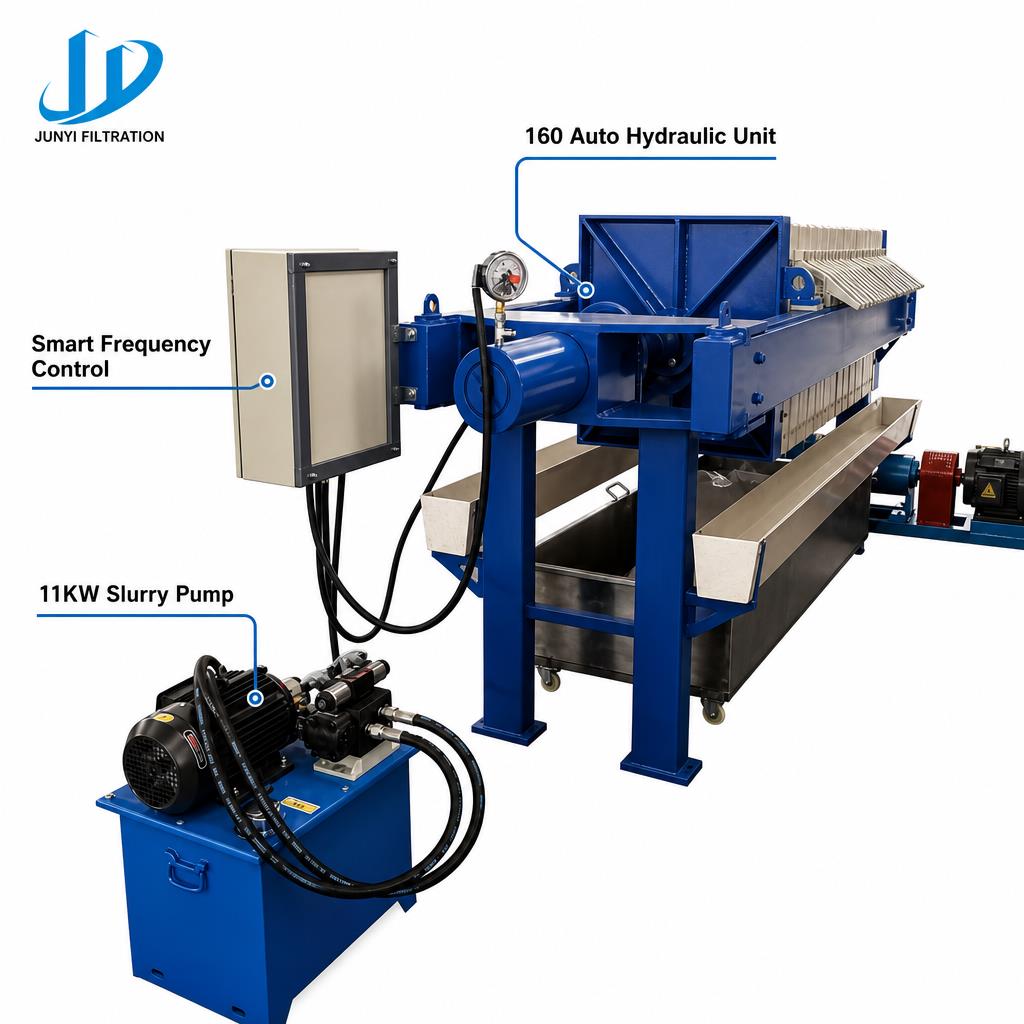

  • 2 The carbon steel frame is combined with an automatic hydraulic 160 pressing system. The pressing force is reliable and the sealing performance is good, reducing the leakage phenomenon.
  • 3 The double clear flow design is equipped with a PVC water tank. The filtrate flows out smoothly, facilitating observation and collection.
  • 4 A 304SS feed pipeline is configured, with a feed inlet of DN65. It has good corrosion resistance and is suitable for various material conditions.
  • 5 The control part uses a button control cabinet, which can control the hydraulic system and the start/stop of the feed pump. The operation is intuitive and simple.

Product advantages

+ Hydraulic automatic pressing replaces manual pressing, reducing the labor intensity of workers and improving work efficiency.
+ PP filter plates are resistant to acids and alkalis and corrosion, suitable for filtering various chemical materials.
+ The double flow structure is convenient for separately collecting filtrate and adapts to different process requirements.
+ 304SS feed pipes and ultra-high molecular polyethylene slurry pumps have flow components, extending the service life of the equipment in corrosive materials.
+ The variable frequency motor drives the feed pump, allowing the feed speed to be adjusted, avoiding damage to the filter plates or uneven filtration due to excessive feed speed.
+ With a single unit equipped with 24 + 2 filter plates, the standby filter plates can reduce downtime for replacement and enhance the continuous operation capability.

Application fields

This filter press is suitable for solid-liquid separation of aluminum-based soft materials under conditions of 30-40℃. It can be widely applied in processes such as corrosion-resistant material filtration, waste liquid treatment, and resource recovery in industries like chemical engineering, metallurgy, mining, and environmental protection. It is particularly suitable for filtration scenarios that require acid corrosion resistance and automatic compression.
