870 PP Filter Press for Ceramic Slurry Customizable Carbon Steel Frame

Product features

1. Box-type open-flow structure: The filter plates adopt a box-type open-flow design. The filtrate is discharged through an open-flow PP water tank, facilitating the observation of the filtrate status and timely detection of problems.

2. Hydraulic drive system: The entire machine uses hydraulic drive, with a working pressure of 0.6 MPa, and the cylinder diameter is 200 mm. The operation is stable, and the pressing force is reliable.

3. Manual pull-plate method: A manual pull-plate method is adopted. The structure is simple, the operation is intuitive, and it is convenient for daily maintenance and troubleshooting.

4. Middle feed design: The material enters from the middle of the filter plate, the feed is uniform, which helps to form a stable filter cake.

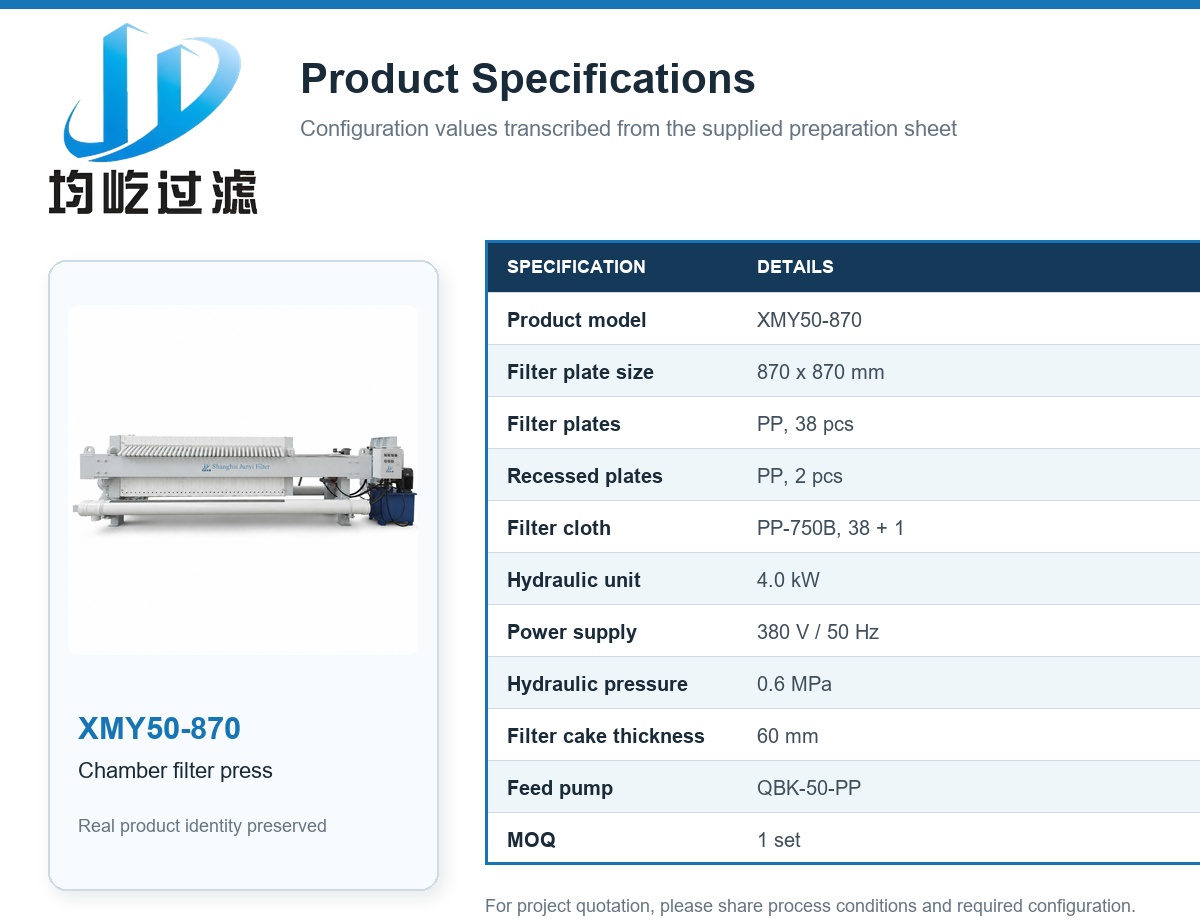

5. PP material filter plates and filter cloth: The filter plates are made of PP, with an outer diameter of 870 × 870 mm and a thickness of 60 mm; the filter cloth model is 750B, which is compatible with 870-type filter plates, with an open-flow structure, and has good corrosion resistance.

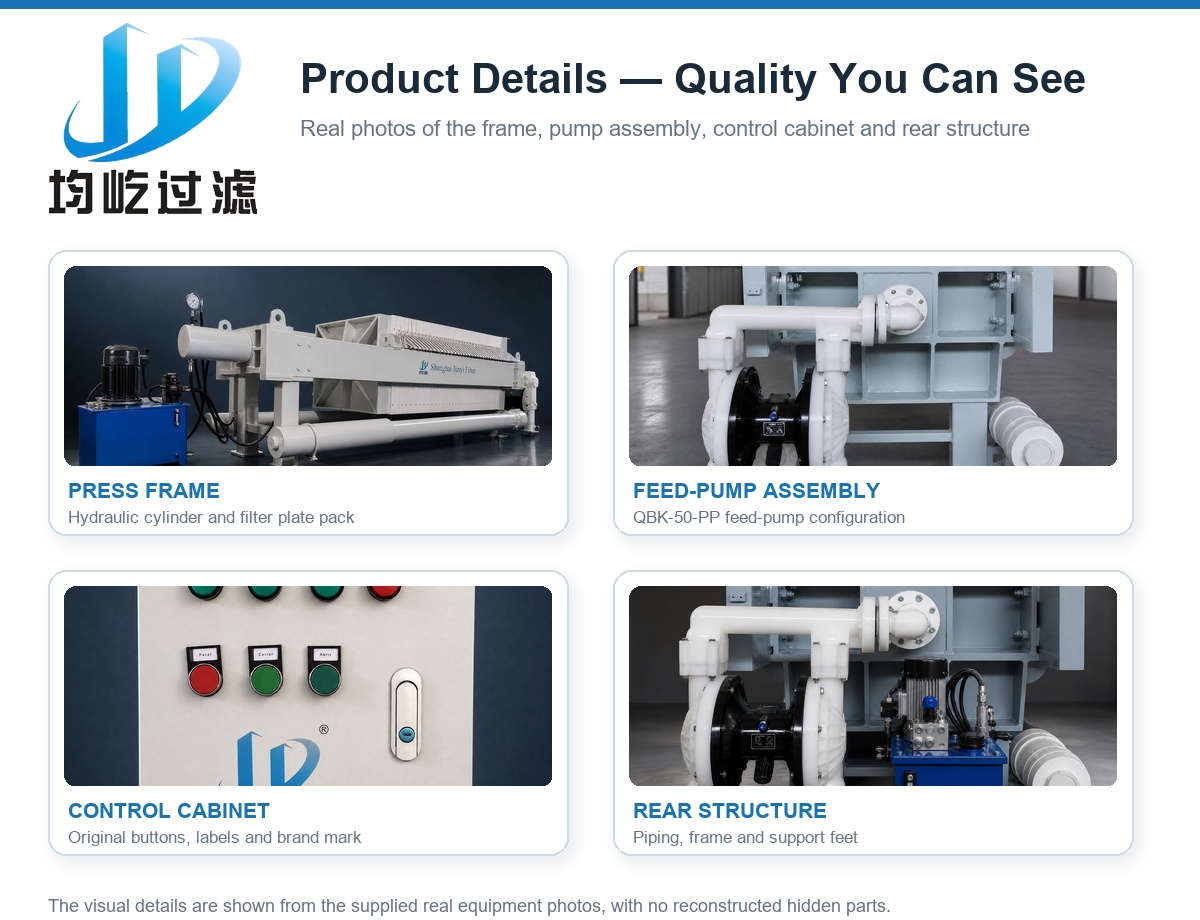

6. Air-driven diaphragm pump matching: A QBK-50 type air-driven diaphragm pump is equipped, made of PP, forming a complete feed and transportation link with the filter press.

7. Pipeline process matching: PP pipes are used to connect the air-driven diaphragm pump and the filter press, the pipeline is corrosion-resistant, and it meets the overall process requirements.

8. Carbon steel frame: The body of the filter press is made of carbon steel, the structural strength meets the requirements of a normal temperature 0.6 MPa working pressure, and the paint color can be processed as needed.

Product advantages

1. Mature and reliable structure: The 870-type box-type filter press is a common specification. The combination of hydraulic drive and manual pull-plate makes the equipment structure simple, with fewer fault points, and suitable for operations with low requirements for automation.

2. Corrosion-resistant configuration: The filter plates, filter cloth, pipelines, and air-driven diaphragm pump flow parts are made of PP material, having good adaptability to general corrosive materials.

3. Convenient maintenance: The manual pull-plate method is convenient for checking the status of each filter plate and filter cloth one by one. The open-flow structure is convenient for observing the filtrate output of each filter plate. Daily maintenance and filter cloth replacement are relatively straightforward.

4. Complete matching: From the feed pump, pipelines to the filter press body and filter cloth, a complete small-scale solid-liquid separation unit is formed, reducing the trouble of users’ own equipment matching.

5. Reasonable filter plate quantity configuration: 38 middle plates plus 2 head and tail plates, a total of 40 filter plates, in the 870-type equipment, it is a common configuration, balancing processing capacity and equipment size.

Application fields

1. This equipment is suitable for solid-liquid separation operations under normal temperature and a working pressure of 0.6 MPa. It is particularly suitable for the following scenarios:

2. Chemical industry: Solid-liquid separation of various chemical raw materials, intermediates, and products, especially for materials without or with weak corrosion to PP materials.

3. Environmental water treatment: Sludge dewatering, suspended matter separation in wastewater treatment processes.

4. Mining and metallurgy: Small-scale mineral separation, tailings treatment, and smelting processes involving solid-liquid separation.

5. Food and agricultural product processing: Filtration and dehydration of non-pharmaceutical food raw materials.

6. Ceramics and building materials: Dewatering treatment of ceramic raw materials, slurry, etc.
